1. Strong Performance
Powerful sensorless control
Starting torque of 200%/0.5Hz is produced and provides robust power in the low speed region.
Selectable rotary/standstill auto-tuning
Standstill auto-tuning is equipped to find motor constants without rotation under conditions where the system is installed or the motor cannot rotate.
Flying start function
Inverter capable of quick, reliable, and smooth restart into bi-directional rotating loads.
2. Space efficient design
Side by side installation
Minimized distance between products enables control panel size reduction when installing multiple AC Drives
Smaller Size
Main parts are optimally arranged inside through the use of thermal radiation analysis and 3-dimensional design to reduce the dimensions by up to 60% (volume based) compared to the previous product (iG5A)
3. Standard Compliance
Built-in DC reactor
Effective in improving power factors and decreasing THD
※ 3-phase 400V 30~75kW
Built-in EMC filter
Meets the electrical noise reduction regulation
Related standards: Certified 2nd Environment/Category C3 (Class A) CE standard
※ C2 : 1-phase 200V 0.4~2.2kW
※ C3 : 3-phase 400V 0.4~75kW
Global compliance (UL, CE)
Global standard compliance
※ UL, CE, Gost, C-tick and cUL
Dual rating operation
Designed to choose between heavy and normal duty operations
Overload capacity
※ Heavy duty operation : 150% of rated current, 60 seconds
※ Normal duty operation : 120% of rated current, 60 seconds
Various field networks
Able to deal with a variety of field networks easy maintenance and mounting.
Various field bus options
Profibus, Ethernet IP, Modbus TCP, CANopen Easy to install and use
4. Safety Function

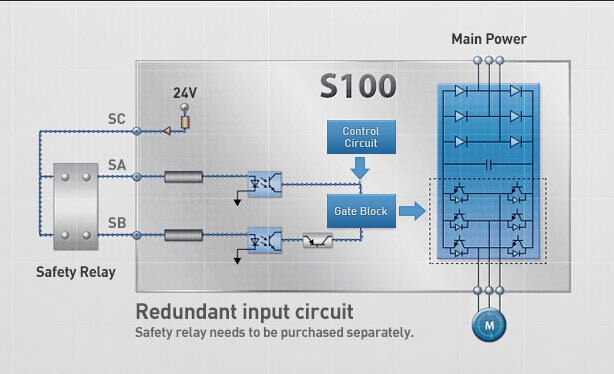

Built-in Safety Torque Off (STO)
The Safety input function meets EN ISO 13849-1 PLd and EN 61508 SIL2 (En 60204-1, stop category 0)
This feature is equipped and meets current safety standards
.jpg)
5. Suitable for Users
Simple cooling fan replacement
Replaceable fan without complete disassembly
Smart copier
1. Smart copier allows users to download & upload the parameters from/to S100 without AC input power.
2. Customized main firmware is able to be downloaded to S100 using Smart copier.
3. Firmware of main control and I/O saved in Smart copier can be downloaded to S100
Multi-keypad function
A single LCD keypad can be used to set up the parameters of a RS485 connected drive
LCD keypad (same as iS7 model) is used to easily set up parameters. Parameters can be copied to other drives
Multi language support will be available
Conduit option
S100 meets UL type 1 with this option.

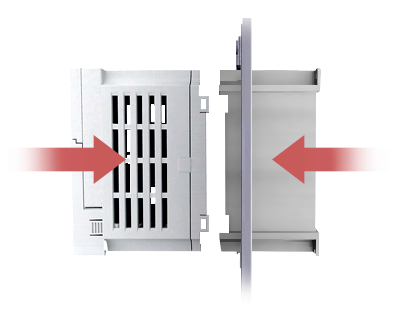

Flange option
With this option, S100 allows its heatsink to be installed outside of the panel for a better cooling system.
Frame Design

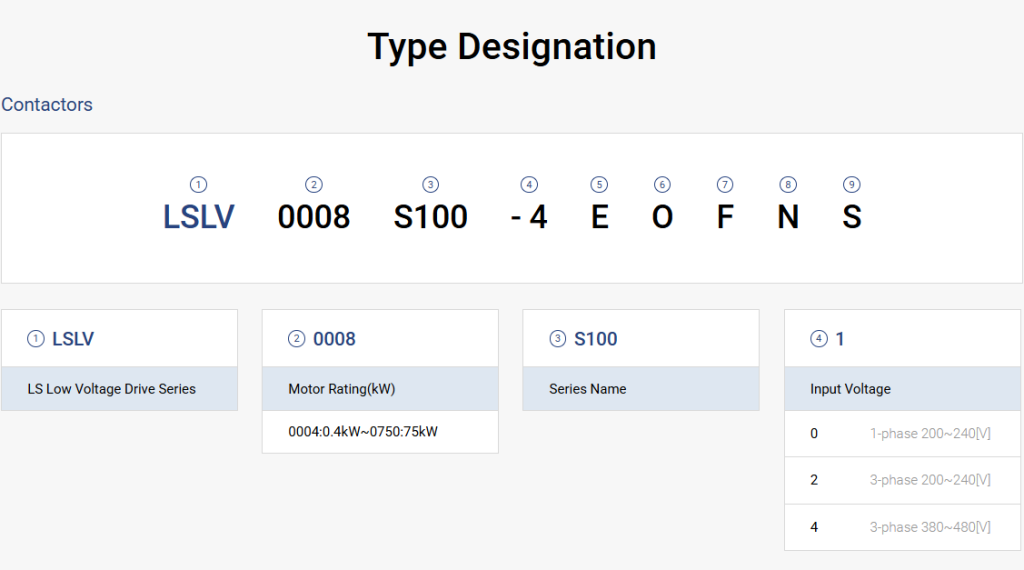

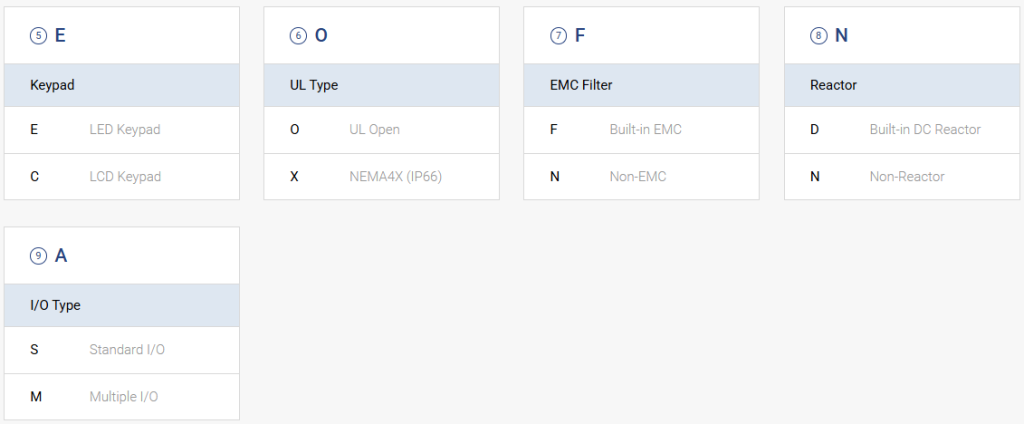

Type Designation
