M100

Micro Drive

Features

1. Product Reliabilty

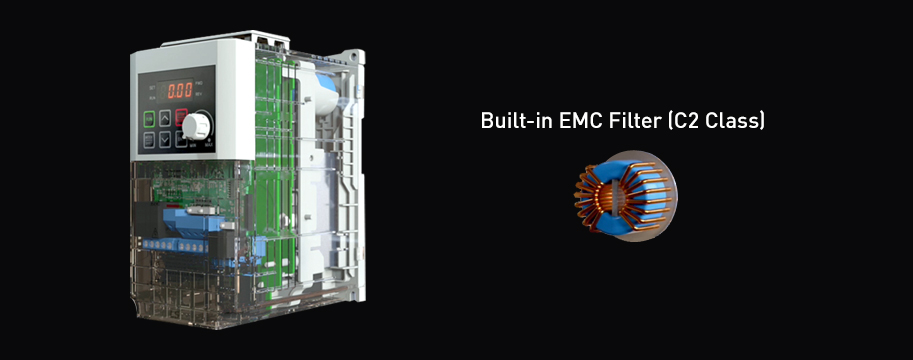

Built-in EMC Filter (C2 Class)

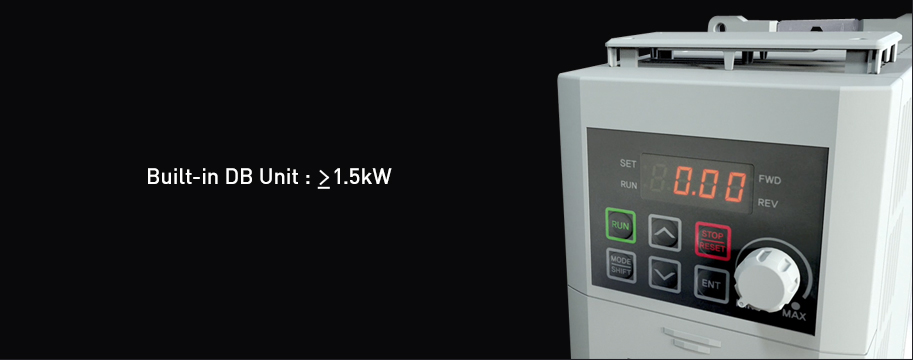

Built-in DB Unit 1.5kW

2. Customer Convenience

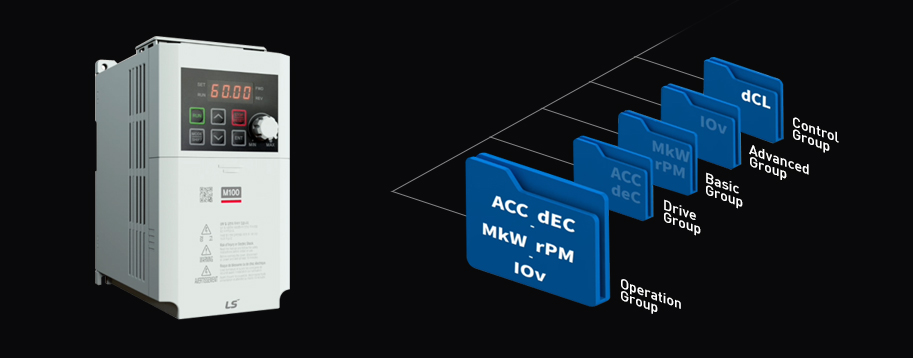

Quick menu gives easy access to the most frequently used parameters

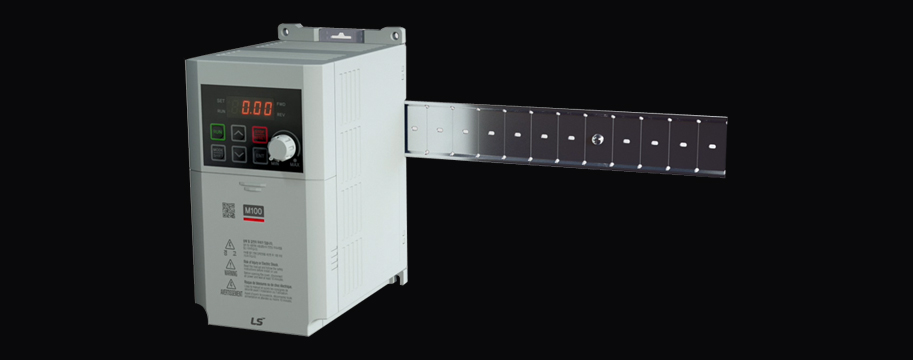

DIN-Rail Mountable

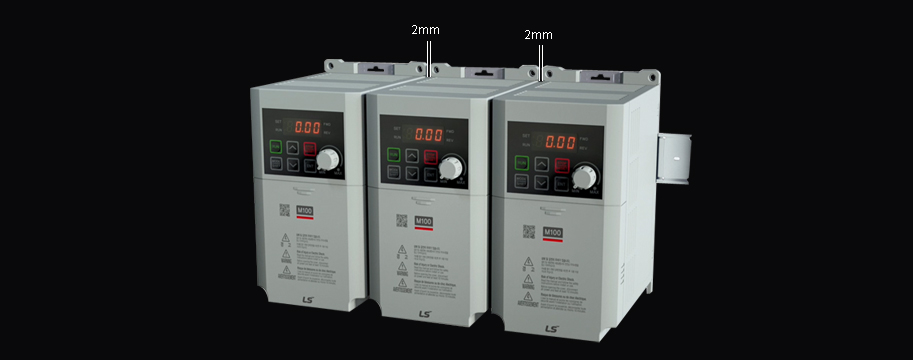

Side-by-Side Installation (2mm between drives)

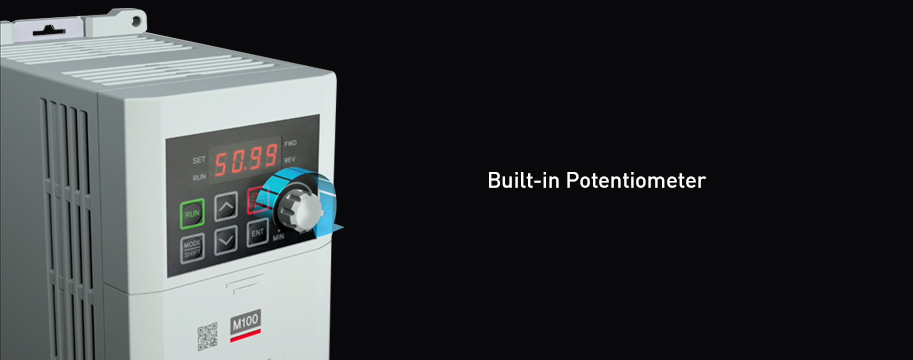

Built-in Potentiometer

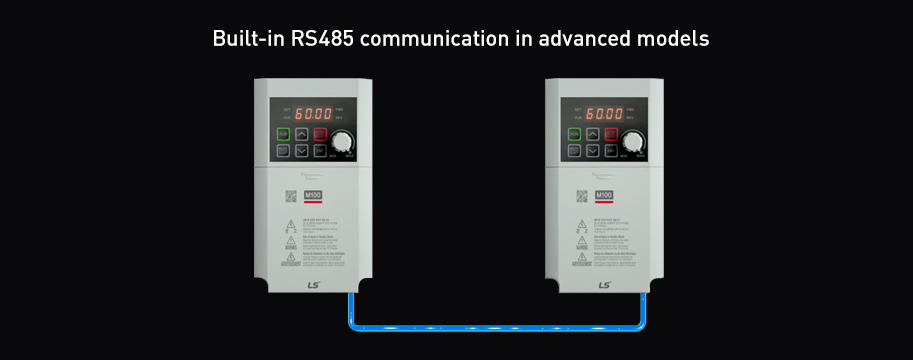

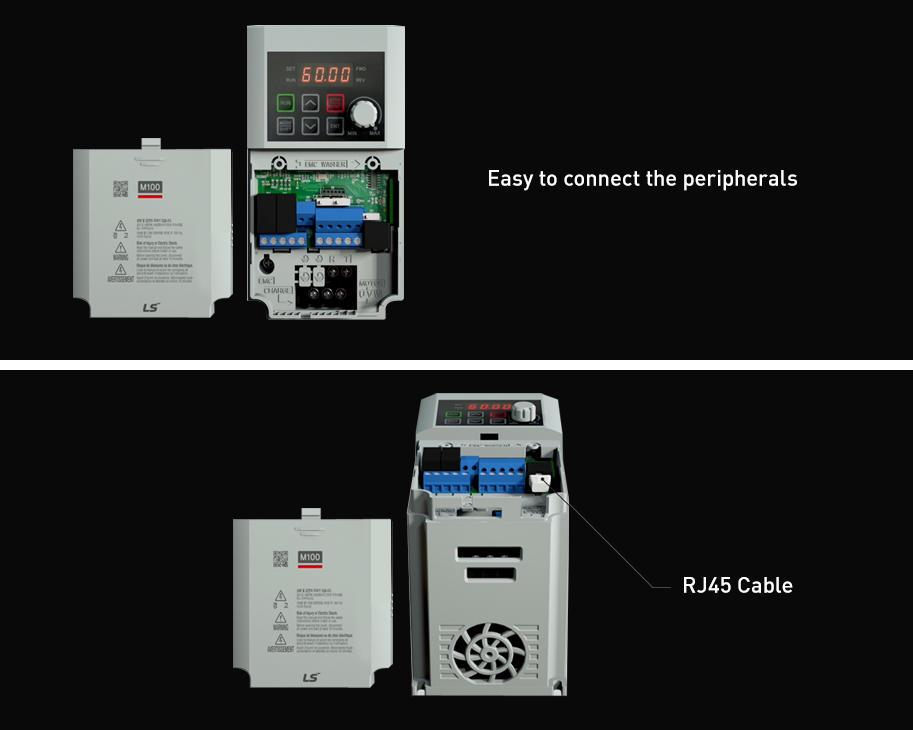

Easy to connect the peripherals

Easy to connect the peripherals

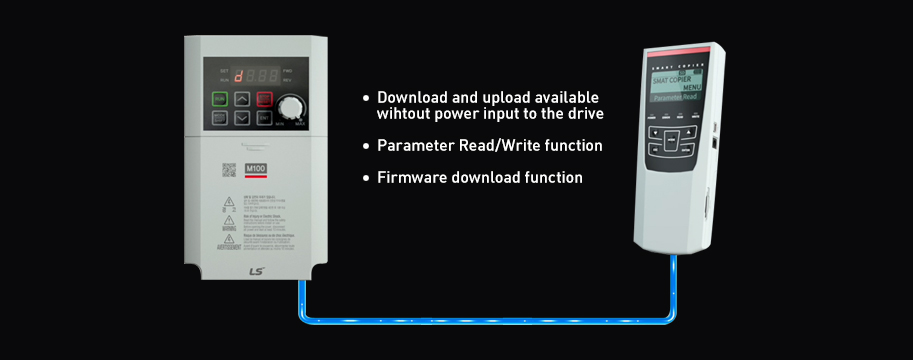

Smart Copier Connection with RJ45

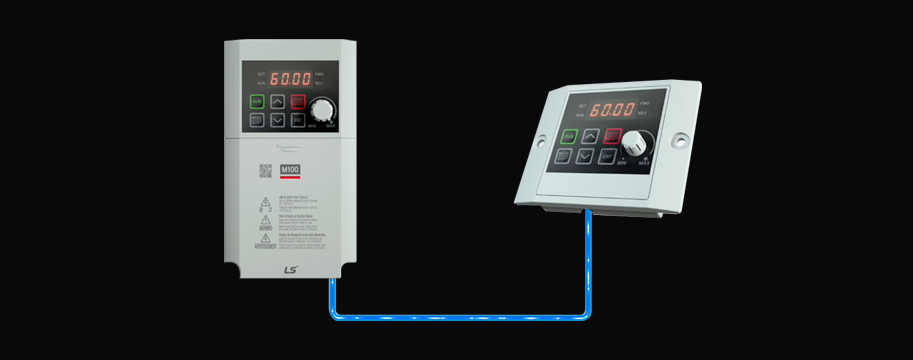

Remote Keypad Connection with RJ45

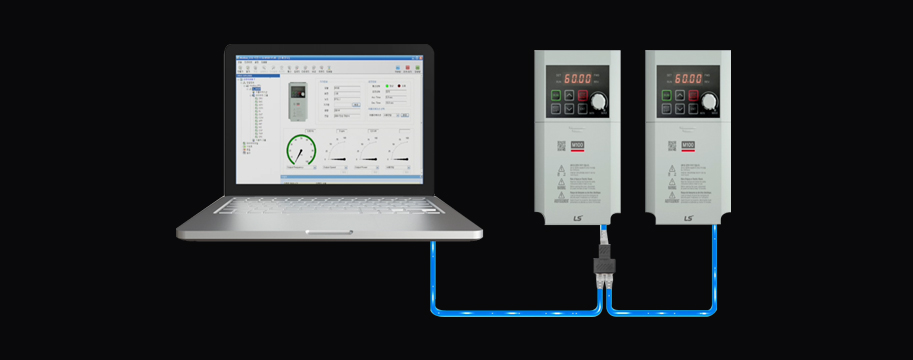

PC Connection with Drive View7 SW control and monitoring system

3. Global Standard Compliance

Frame Design

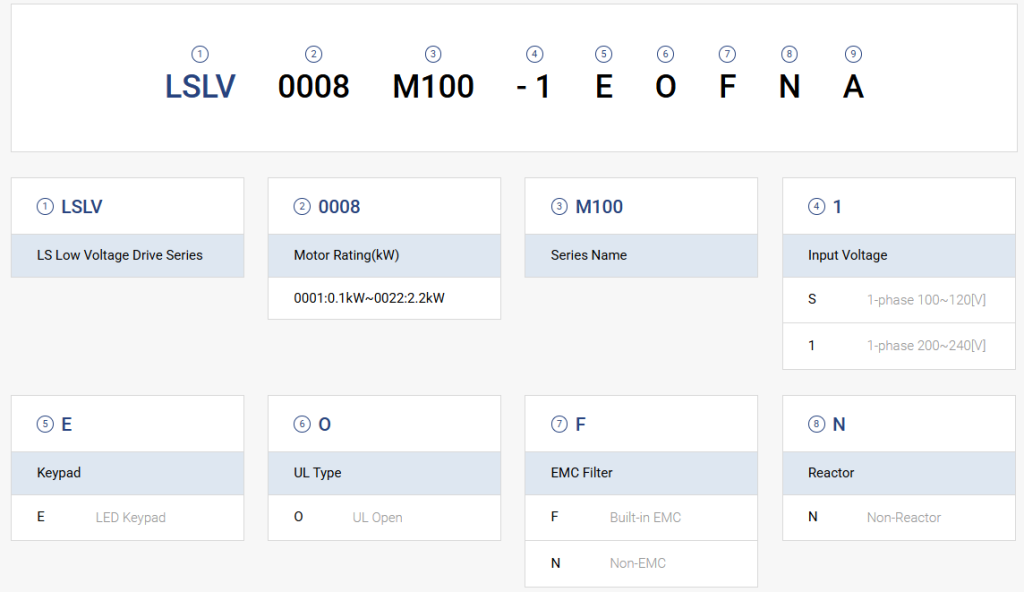

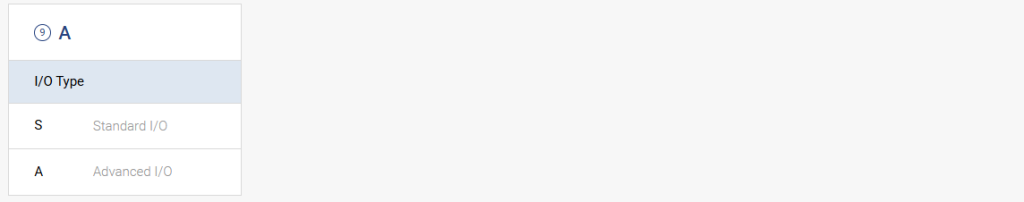

Type Designation

Contactors

Specification

LSLV M100-EOFN			0002	0004	0008	0001	0002	0004	0008	0015	0022
Applied motor	Heavy duty	HP	0.25	0.5	1.0	0.125	0.25	0.5	1.0	2.0	3.0
Applied motor	Heavy duty	kW	0.2	0.4	0.75	0.1	0.2	0.4	0.75	1.5	2.2
Rated output	Rated capacity [kVA]		0.6	0.95	1.9	0.3	0.6	0.95	1.9	3.0	4.5
	Rated current [A]		1.4	2.4	4.2	0.8	1.4	2.4	4.2	7.5	10.0
	Rrequency [Hz]		0~400Hz			0~400Hz
	Voltage [V]		3 phase 200-240V			3 phase 200-240V
Rated input	Voltage [V]		1 phase 100~120Vac(-15% to +10%)			1 phase 200~240Vac(-15% to +10%)
	Frequency [Hz]		50~60Hz(±5%)			50~60Hz(±5%)
	Rated current [A]		3.7	7.4	13.9	1.0	1.8	3.7	7.1	13.6	18.7
Cooling type			Natural cooling			Natural cooling		Forced fan cooling
Weight (Kg)			1		1.36	0.66		1		1.45

Environment

Environment
Ambient temperature 1)	-10 ~ 50℃(14 ~ 122℉), Ambient temperature under the condition of no ice or frost
Ambient humidity	Relative humidity less than 95% RH(to avoid condensation forming)
Storage temperature	-20 ~ 65℃(-4 ~ 149℉)
Surrounding environemt	Prevent contact with corrosive gases, inflammable gases, oil stainsk dust, and other pollutants(Pollution Degree 2 Environment)
Altitude/Oscillation	Maximum 1000m above sea level for standard operation. / 9.8m/sec2 (1G) (From 1000 to 4000m, the rated input voltage and rated output current of the drive must be derated by 1% for every 100m.)
Pressure	70 ~ 106 kPa

*1) 01 ~ 0.2kW products can be operated at a maximum of 50℃.
However, the lifespan of the product maybe reduced when oprrating continuously with a full load when the ambient temperature exceeds 40℃
