Powerful Performance
- Control mode: V/F, V/F PG, Sensorless Vector, Vector
- Speed Control Range 1:100(Sensorless Vector), 1:1000(Vector)
- LV Trip Delay Function, Cooling Fan Control
- Droop Control, KEB Function, Flying Start, Flux Brake
- PMSM Control
Flexibility
- Built-in RS485 & Modbus Communication
- Profibus-DP, DeviceNet, LonWorks, Rnet, Modbus TCP Option
- Max. Input 11 Points, Output 6 Points when use expended I/O Card
- PLC Card option: Master-K platform Normal Input 14 Points, Normal Output 7 points
- Encoder Card option
- Optional IP54 Enclosure (~ 22kW)
Convenience & Environment
- Built-in EMC filter to protect from excessive electronic distortion
- DC reactor built-in for harmonic reduction and power factor improvement
- Widened graphic LCD keypad
- Multi-language support (5 languages)
- User & macro group support

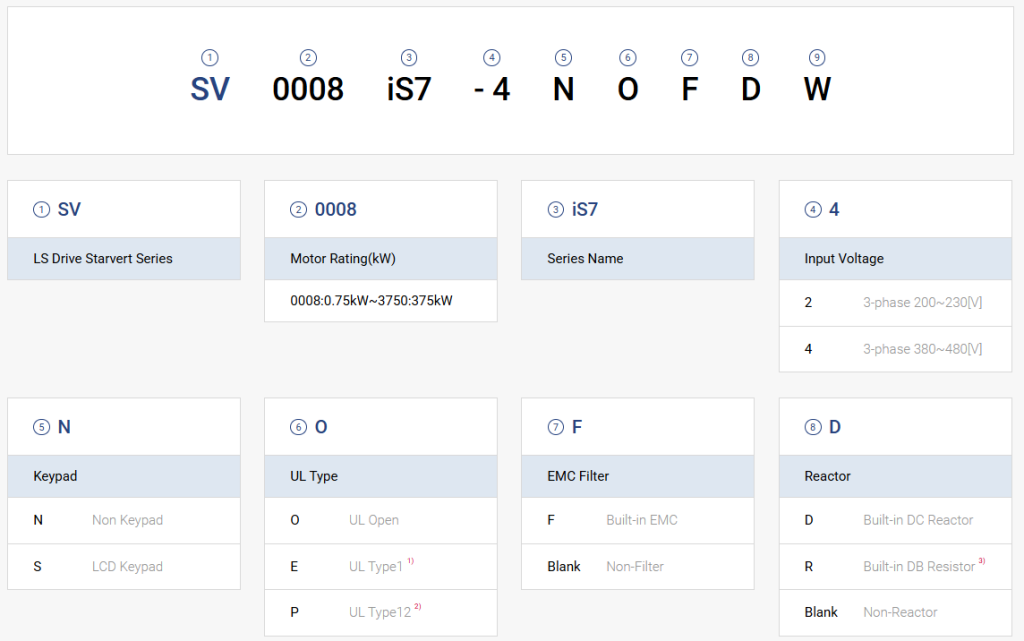

For 0.75~75KW enclosed type-1 can be satisfied if conduit option is installed.
2)Enclosed UL type 1 and 2 is available from 0.75 to 22kW.

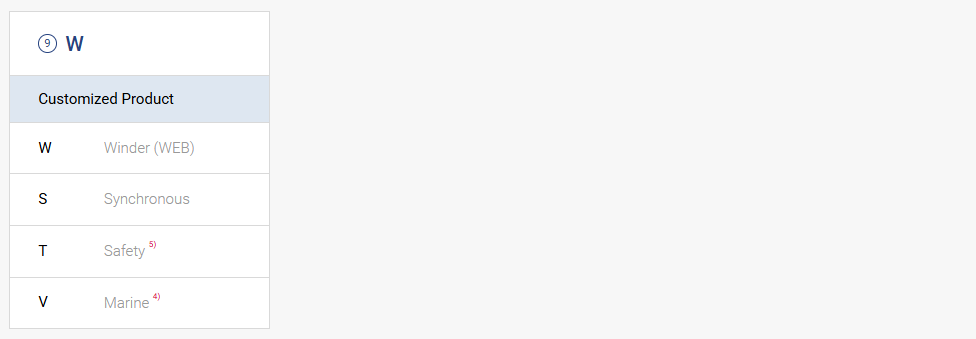

3)Built-in DB resistor option is available only for the web version product from 0.75kW to 3.7kW.
DB resistor of IS7 porduct is the WEB product option.
Applicable capacity is from 0.75 to 375 kW of IS7 products.
4)For more information about marine certification, refer to page 25.
5)For 0.75~160kW, the safety option cannot be installed in the field.
A type “T” safety iS7 must be specified and ordered from the factory.
For 185~375kW, a safety option can be purchased separately in the field installed on the standard iS7.
