Our iE5 realizes 5% smaller micro size compared to the previous product.
Easy operation is made possible due to the adoption of the 6 keys and volume resistor types on the loader. Convenience is guaranteed by limiting the total number of parameters to 100.
The optional modbus communication enables controlling drives through PLC and other controlling devices.

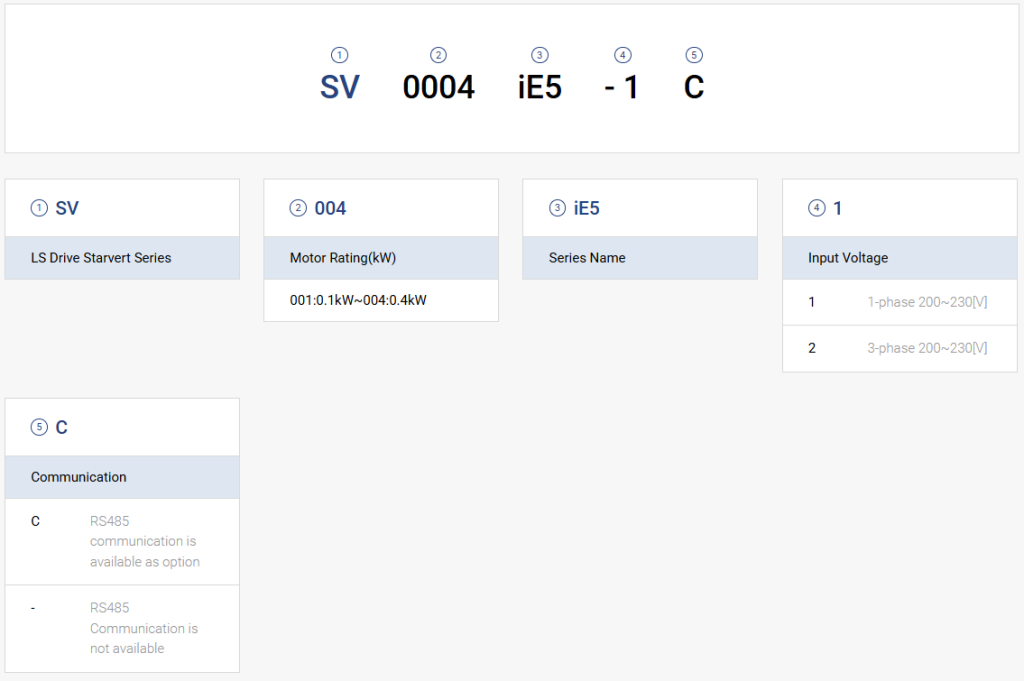

| Model: SVㅁㅁㅁ iE5-ㅁ | 001-1 | 002-2 | 004-1 | 001-2 | 002-2 | 004-2 | ||
|---|---|---|---|---|---|---|---|---|
| Applicable motor 1) | [HP] | 1/8 | 1/4 | 1/2 | 1/8 | 1/4 | 1/2 | |
| [kW] | 0.1 | 0.2 | 0.4 | 0.1 | 0.2 | 0.4 | ||
| Rated output | Rated capacity [kVA] 2) | 0.3 | 0.6 | 0.95 | 0.3 | 0.6 | 1.4 | |
| Rated current [A] | 0.8 | 1.4 | 2.5 | 0.8 | 1.6 | 3.0 | ||
| Output frequency [Hz] | 0 ~ 200 [Hz] | |||||||
| Output voltage [V] | 3 phase 200 ~ 230V 3) | |||||||
| Rated input | Applicable voltage [V] | 1 phase 200 ~ 230 VAC (±10%) | 3 phase 200 ~ 230 VAC (±10%) | |||||
| Input frequency [Hz] | 50 ~ 60 [Hz] (±5%) | |||||||
| Rated current [A] | 2.0 | 3.5 | 5.5 | 1.2 | 2.0 | 3.5 | ||
1)The standard of rated capacity is 220V.
2)The maximum output voltage does not increase over input voltage and the output voltage can be set below input voltage level.
