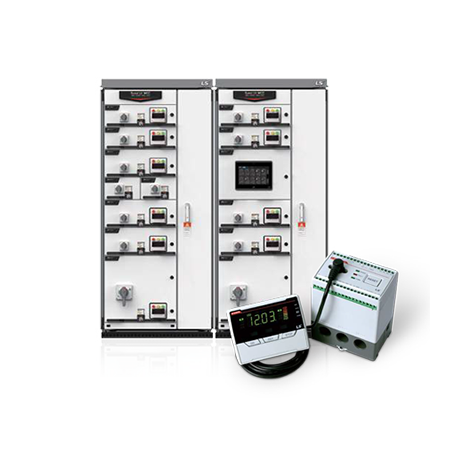

Smart MCC

LS ELECTRIC Smart MCC enhanced the function of motor operation, protection, and measurement by applying Smart EMPR. It is a smarter control and management system that gives you the convenience from energy management to maintenance.

Features

Safety for Operation and Management

  • Minimize fault spread and repair cost by rapidly detecting faults, accidents, and real-time alarms

Customer Convenience

  • Minimize field check by remotely monitoring through the PC Manager
  • Setting and monitoring multiple EMPRs through the Local HMI and PC Manager

Enhanced Energy Management and Maintenance Function

  • Monitoring the quantity of electricity by motor
  • Data of total operation time and continuous operation time by motor
  • Daily and monthly reports (current value, power, power factor, etc.)

Specification

RatingSpecification
Rated voltageUp to 500V
Rated currentMainUp to 5000A
DistributionUp to 1500A
Rated frequency50 / 60 Hz
Rated short time withstand currentUp to 100kA/1s
Arc fault containment (IEC TR 61641)Up to 100kA/0.3s
(85kA/0.5s)
Degree of protectionUp to IP54
Form of Internal separationForm 4b
Size (W x D x H, mm)Double front type1000 x 1000 x 2250
Single front type1000 x 650 x 2250
