14kW B Type
14kW B-C Type
7kW B Type
7kW B-C Type
| Type | Specification | |
|---|---|---|
| Model | LECS014-2CH07BS | |
| AC Input | Phase/Lines | 1 Phase + Neutral + PE |
| Voltage | 220V | |
| Frequency | 60Hz | |
| AC Output | Voltage | 220V |
| Current | 64A (2CH×32A) | |
| Power | 14kW | |
| Structure Design | Panel Material | Galvanized steel |
| Glass Material | Temper glass | |
| Installation Method | Floor-stand | |
| Charging Time | Around 10 hours (Based on EV battery 72kWh / 2Channel) | |
| Output | For single charging of one electric vehicle : 7 kW/h For simultaneous charging of two electric vehicles : 7 kW/h each | |
| Charging Outlet | 2 Charging sockets (Type1) | |
| Cable/socket | Cable-Not included Socket - Rated : AC250V, 32A | |
| LED indicator | 2 indicators (AC 1, AC 2) | |
| LCD size | 7-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC 62196-2:2016 | |

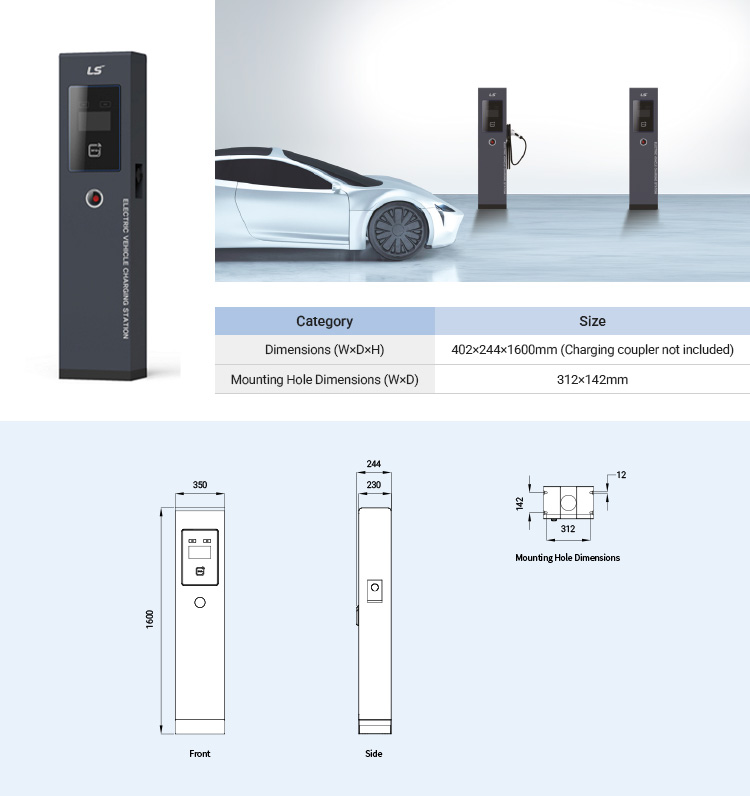

| Dimension (W×D×H) | 350×244×1600 mm (Excluding the charging coupler) | |
| Mounting Hole Dimensions (W×D) | 312×142mm | |
| Type | Specification | |
|---|---|---|
| Model | LECS014-2CH07BCS | |
| AC Input | Phase/Lines | 1 Phase + Neutral + PE |
| Voltage | 220V | |
| Frequency | 60Hz | |
| AC Output | Voltage | 220V |
| Current | 64A (2CH×32A) | |
| Power | 14kW | |
| Structure Design | Panel Material | Galvanized steel |
| Glass Material | Temper glass | |
| Installation Method | Floor-stand | |
| Charging Time | Around 10 hours (Based on EV battery 72kWh / 2Channel) | |
| Output | For single charging of one electric vehicle : 7 kW/h For simultaneous charging of two electric vehicles : 7 kW/h each | |
| Charging Outlet | 1 Charging gun (Type1) 1 Charging socket (Type1) | |
| Cable/socket | Cable -Rated: AC240V, 32A /L: 5m/ D: 6 mm2 Socket -Rated: AC250V, 32A | |
| LED indicator | 2 indicators (AC 1, AC 2) | |
| LCD size | 7-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC 62196-2:2016 | |

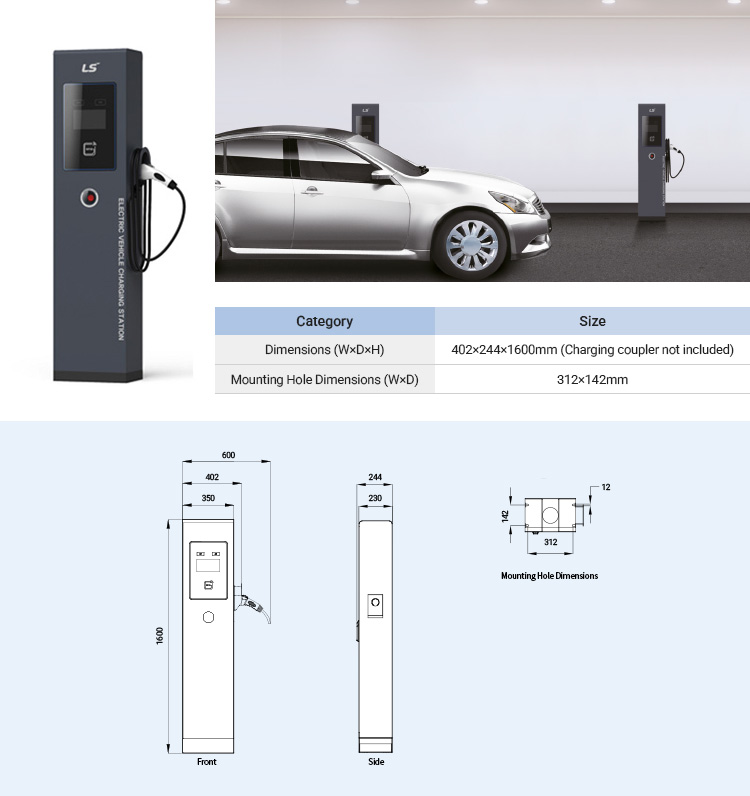

| Dimension (W×D×H) | 402×244×1600 mm (Excluding the charging coupler) | |
| Mounting Hole Dimensions (W×D) | 312×142mm | |
| Type | Specification | |
|---|---|---|
| Model | LECS007-1CH07BS | |
| AC Input | Phase/Lines | 1 Phase + Neutral + PE |
| Voltage | 220V | |
| Frequency | 60Hz | |
| AC Output | Voltage | 220V |
| Current | 32A | |
| Power | 7kW | |
| Structure Design | Panel Material | Galvanized steel |
| Glass Material | Temper glass | |
| Installation Method | Floor-stand | |
| Charging Time | Around 10 hours (Based on EV battery 72kWh / 2Channels) | |
| Output | For single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) | |
| Charging Outlet | 1 Charging socket (Type1) | |
| Cable/socket | Cable-Not included Socket - Rated : AC250V, 32A | |
| LED indicator | 1 Indicator | |
| LCD size | 7-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC 62196-2:2016 | |

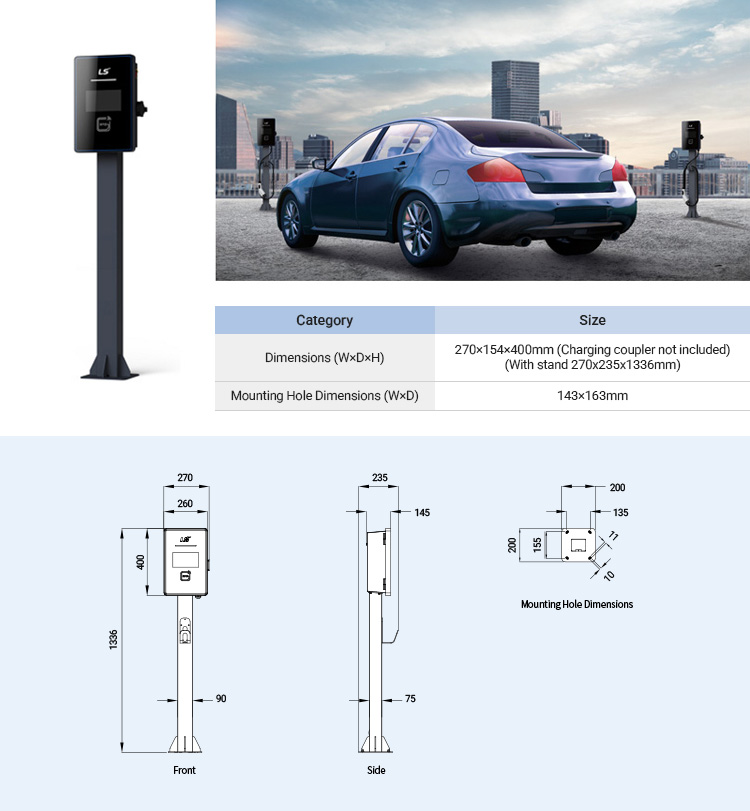

| Dimension (W×D×H) | 270×145×400 mm (With stand 270×235×1336 mm) | |
| Mounting Hole Dimensions (W×D) | 143×163mm | |
| Type | Specification | |
|---|---|---|
| Model | LECS007-1CH07BCS | |
| AC Input | Phase/Lines | 1 Phase + Neutral + PE |
| Voltage | 220V | |
| Frequency | 60Hz | |
| AC Output | Voltage | 220V |
| Current | 32A | |
| Power | 7kW | |
| Structure Design | Panel Material | Galvanized steel |
| Glass Material | Temper glass | |
| Installation Method | Floor-stand | |
| Charging Time | Around 10 hours (Based on EV battery 72kWh / 2Channels) | |
| Output | For single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) | |
| Charging Outlet | 1 Charging gun (Type1) 1 Charging socket (Type1) | |
| Cable/socket | Cable -Rated: AC240V, 32A / L: 4m/D: 6mm2 Socket -Rated: AC250V, 32A | |
| LED indicator | 1 Indicator | |
| LCD size | 7-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC 62196-2:2016 | |
| Dimension (W×D×H) | 270×145×400 mm (Excluding the charging coupler) (With stand 270×235×1336 mm) | |
| Mounting Hole Dimensions (W×D) | 143×163mm | |
| Type | Specification | |
|---|---|---|
| Model | LECS007-1CH07BCW | |
| AC Input | Phase/Lines | 3-Phase + Neutral + PE |
| Voltage | 220V | |
| Frequency | 60Hz | |
| AC Output | Voltage | 220V |
| Current | 32A | |
| Power | 7kW | |
| Structure Design | Panel Material | Galvanized steel |
| Glass Material | Temper glass | |
| Installation Method | Wall Mounted | |
| Charging Time | Around 10 hours (Based on EV battery 72kWh / 2Channels) | |
| Output | For single charging of one electric vehicle : 7 kW/h (Simultaneous charging not supported) | |
| Charging Outlet | 1 Charging gun (Type1) 1 Charging socket (Type1) | |
| Cable/socket | Cable -Rated: AC240V, 32A / L: 4m / D: 6mm2 Socket -Rated: AC250V, 32A | |
| LED indicator | 1 Indicator | |
| LCD size | 7-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC 62196-2:2016 | |
| Dimension (W×D×H) | 270×164×400 mm (Excluding the charging coupler) | |
| Mounting Hole Dimensions (W×D) | 140×195mm (For wall surface) | |
