| Type | Specification | |
|---|---|---|

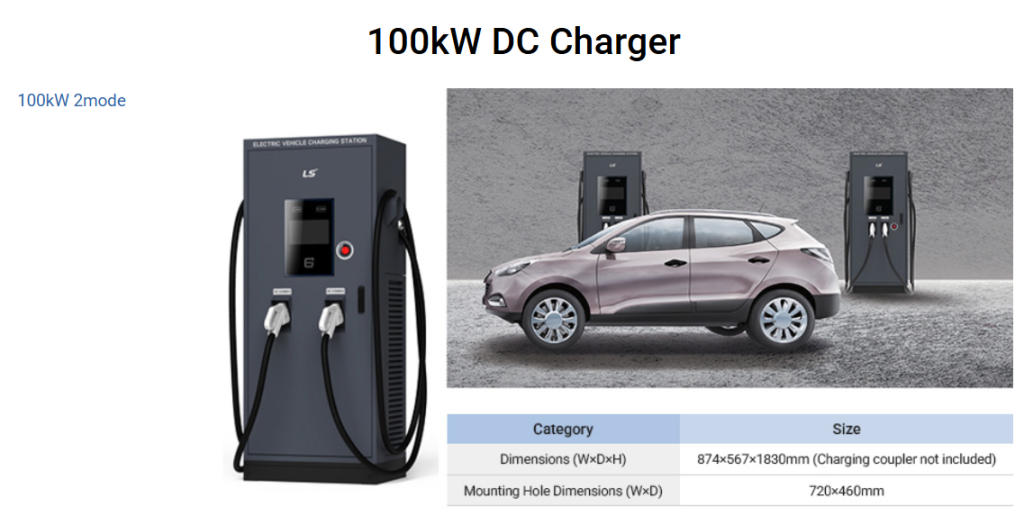

| Model | LECF100-2M15S | |
| AC Input | Phase/Lines | 3-Phase + Neutral + PE |
| Voltage | 380V | |
| Frequency | 60Hz | |
| DC Output | Voltage | 200~600V |
| Current | 200A | |
| Power | 100kW | |
| Electrical Parameter | Power Factor | ≥ 0.95 (50%~100% load) |
| THD | ≤ 0.05 (50%~100% load) | |
| Voltage Accuracy | ±0.5% | |
| Current Accuracy | ±1.0% | |
| Efficiency | 95.2% | |
| Structure Design | Housing Material | Galvanized steel |
| Installation Method | Floor-stand | |
| Charging Time | Around 45 minutes (Based on EV battery 72kWh) | |
| Output | For single charging of one electric vehicle : 100kW/h For simultaneous charging of two electric vehicles : 50 kW/h each | |
| Charging Outlet | 2 Charging guns (SAE Combo Type1/ SAE Combo Type1) | |
| Cable | Rated : DC 600V, 200A / Length : 5m / Diameter : 70mm2 | |
| LED indicator | 2 Indicators (DC COMBO 1, DC COMBO 2) | |
| LCD size | 15-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number, Credit card reader(Optional) | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC 61815-23:2014 | |

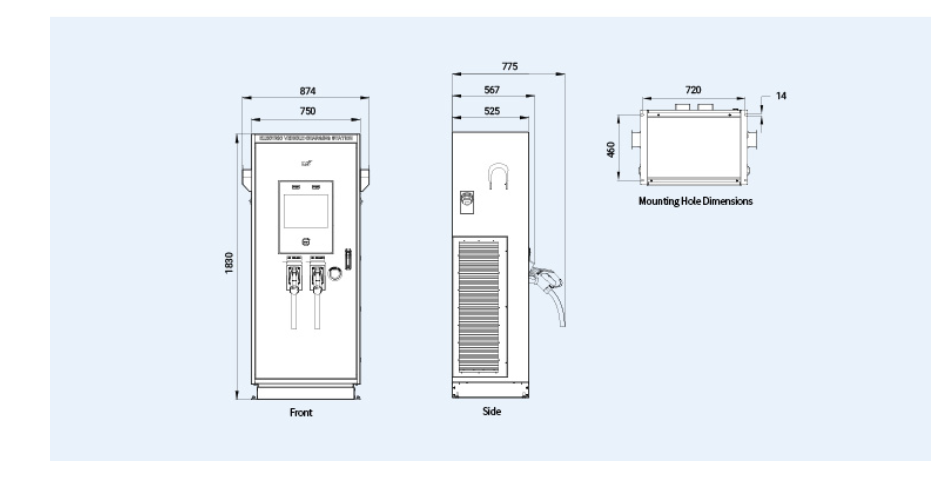

| Dimension (W×D×H) | 874×567×1830mm (Excluding the charging coupler) | |
| Mounting Hole Dimensions (W×D) | 720×460mm | |
| Type | Specification | |
|---|---|---|

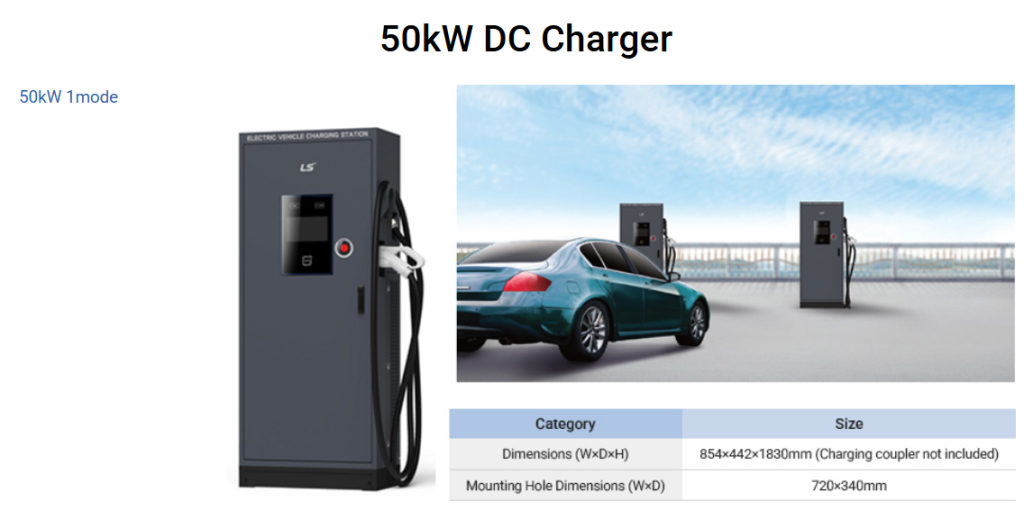

| Model | LECF050-1M10S | |
| AC Input | Phase/Lines | 3-Phase + Neutral + PE |
| Voltage | 380V | |
| Frequency | 60Hz | |
| DC Output | Voltage | 200~600V |
| Current | 120A | |
| Power | 50kW | |
| Electrical Parameter | Power Factor | ≥ 0.95 (50%~100% load) |
| THD | ≤ 0.05 (50%~100% load) | |
| Voltage Accuracy | ±0.5% | |
| Current Accuracy | ±1.0% | |
| Efficiency | 96.7% | |
| Structure Design | Housing Material | Galvanized steel |
| Installation Method | Floor-stand | |
| Charging Time | Around 90 minutes (Based on EV battery 72kWh) | |
| Outlet | For single charging of one electric vehicle : 50 kW/h | |
| Charging Outlet | 1 Charging gun (SAE Combo Type1) | |
| Cable | Rated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 | |
| LED indicator | 2 Indicators (POWER, DC COMBO) | |
| LCD size | 10-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number, Credit card reader(Optional) | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC61815-23:2014 | |
| Dimension (W×D×H) | 802×411×1830mm (Excluding the charging coupler) | |
| Mounting Hole Dimensions (W×D) | 720×340mm | |
| Type | Specification | |
|---|---|---|
| Model | LECF050-1M10S | |
| AC Input | Phase/Lines | 3-Phase + Neutral + PE |
| Voltage | 380V | |
| Frequency | 60Hz | |
| DC Output | Voltage | 200~600V |
| Current | 120A | |
| Power | 50kW | |
| Electrical Parameter | Power Factor | ≥ 0.95 (50%~100% load) |
| THD | ≤ 0.05 (50%~100% load) | |
| Voltage Accuracy | ±0.5% | |
| Current Accuracy | ±1.0% | |
| Efficiency | 96.7% | |
| Structure Design | Housing Material | Galvanized steel |
| Installation Method | Floor-stand | |
| Charging Time | Around 90 minutes (Based on EV battery 72kWh) | |
| Outlet | For single charging of one electric vehicle : 50 kW/h | |
| Charging Outlet | 1 Charging gun (SAE Combo Type1) | |
| Cable | Rated : DC 600V, 150A / Length : 4.5m / Diameter : 42.4mm2 | |
| LED indicator | 2 Indicators (POWER, DC COMBO) | |
| LCD size | 10-inch LCD (Touch Screen) | |
| Communication Method | TCP/IP | |
| Emergency Stop | Button type | |
| Payment Methods | RFID card, Membership number, Credit card reader(Optional) | |
| Usage Environment | Operating Temperature | -25℃ ~ +40℃ |
| Humidity | 5% ~ 95% RH(Non-condensing) | |
| Altitude | 1,000m or less | |
| Protection Grade | IP44 | |
| Installation Location | Indoor / Outdoor | |
| Protection Function | Over/Under voltage protection, Overload protection, Short circuit protection, Grounding protection, Surge protection, Over/Under temperature protection | |
| Safety Standard | IEC 61851-1:2017, IEC61815-23:2014 | |
| Dimension (W×D×H) | 802×411×1830mm (Excluding the charging coupler) | |
| Mounting Hole Dimensions (W×D) | 720×340mm | |
