Features
Product Overview

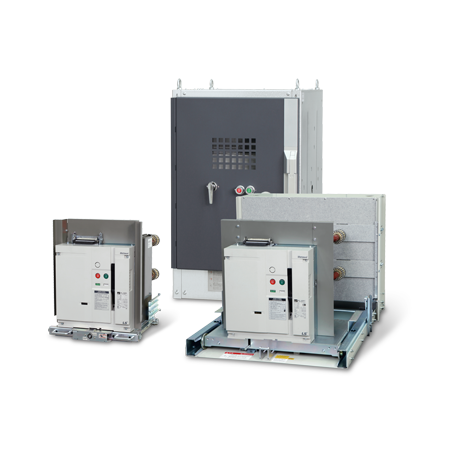

Metasol VCB is a new VCB compact in size and is compatible with existing products up to 17.5kV 31.5kA 1250A.
Benefits
- Compact and simple in structure
- Highly reliable main circuit structure
- Convenience of switchgear configuration
- A variety of accessories and ability to maximize compatibility with existing products up to 17.5kV 31.5kA 1250A
- Applicable for the W550 panel and compatible for the W600 panel
- Modularized main circuit structure: Box type solution for customized supply
Main specification
- Ratings: up to 17.5kV 31.5kA 1250A
- Rated short time: 4sec
- Rated operating sequence : O-0.3s-CO-15s-CO
- Standards : IEC62271-100 [M2,C2,E2]
