XBC/XEC H-Type

Hiệu suất cao
Contact us

Features

Specification

Performance specifications
ItemXBC/XEC-DR32H XBC-DR32H/ DC*1) XEC-DR32H / DIXBC/XEC-DN32H XEC-DP32H*1) XBC-DN32H / DCXBC/XEC-DR64H XBC-DR64H/ DC*1) XEC-DR64H / DIXBC/XEC-DN64H XEC-DP64H*1) XBC-DN64H / DC
Control methodRepetitive, cyclic, interrupt, constant scan
I/ O control methodRefresh mode (Batch processing by scan synchronization), Direct mode by instruction
Programming languageLadder diagram or IEC standard (LD, SFC, ST)*1)
Processing speed83 ns / Step
Program capacity15Kstep (IEC type: 200KB)
Main unit I /O points32
(Input:16, Output:16)		32
(Input:16, Output:16)		64
(Input: 32, Output: 32)		64
(Input: 32, Output: 32)
Max. I /O points
(Main + Expansion 10 stages)		352 points384 points
Total program128
Operation modeRUN, STOP, DEBUG
Self diagnosisDetects errors of scan time, memory error, I/O error, battery error, power error, etc.
Program portUSB (Rev 1.1), RS-232C 1 channel (Loader)
Retain data at power failureLatch area setting at basic parameter
Built-in functionsRS-232C / RS-485 (2 ch), Pulse catch, Input filter, External interrupt, PID control, High-speed counter, Positioning, RTC
Data memory
XBCXEC (IEC type)
PP0000 ~ P1023F (16,384 points)Symbolic variableA32KB (Max. 16KB retain setting available)
MM0000 ~ M1023F (16,384 points)Input variableI2KB (%IX 15.15.63)
KK0000 ~ K4095F (65,536 points)Output variableQ2KB (%QX 15.15.63)
LL0000 ~ L2047F (32,768 points)Direct variableM16KB (Max. 8KB retain setting available)
FF0000 ~ F1023F (16,384 points)R20KB (1 block)
T100ms, 10ms, 1ms: T0000 ~ T1023
(1,024)(Adjustable by parameter setting)		W20KB
CC0000 ~ C1023 (1,024)Flag variableF2KB
SS00.00 ~ S127.99K8KB
DD0000 ~ D10239 (10,240 word)L4KB
UU00.00 ~ U0A.31
(Analog data refresh area: 352 word)		N10KB
ZZ000 ~ Z127 (128 word)U1KB
NN000 ~ N5119 (5,120 word)Flash areaR20KB (2 blocks)

*1) XEC is IEC standard language programming.



Input specification
ItemXBC/XEC- DR32HXBC/XEC-DN32H XEC-DP32HXBC/XEC- DR64HXBC/XEC-DN64H XEC-DP64HXEC-DR32H / D1
XEC-DR64H / D1
Input points16 points32 points16 points
Rated input voltageDC 24VDC 12 / 24V
Rated input current4mA (Contact 0~7: 9mA)5 /10mA (Contact 0~7 : 7/15mA)
Operation voltage rangeDC 20.4 ~ 28.8V (Ripple rate < 5%)DC 9.5~30V (Ripple rate < 5%)
On voltage / On currentDC 19V or more/3mA or moreDC 9V or more/3mA or more
Off voltage / Off currentDC 6V or less/1mA or lessDC 5V or less/1mA or less
Input resistance5.6k Ω (P00 ~ P07: 2.7k Ω )2.7k Ω (%IX0.0.0~%IX0.0.7:1.8k Ω )
Response timeOff → On1/3/5/10/20/70/100 ms
(Setting by CPU parameter) Initial value: 3ms
On → Off


Relay output specification
ItemXBC/XEC- DR32HXBC/ XEC- DR64H
Output point16 points32 points
Insulation methodRelay insulation
Rated load voltage / currentDC 24V 2A (Resistive load)/AC 220V 2A (COSø = 1), 5A/COM
Min. load voltage / currentDC 5V/1mA
Max. load voltageAC 250V, DC 125V
Off leakage current0.1mA (AC 220V, 60Hz)
Service lifeMechanical20millions times or more
ElectricalRated load voltage/current 100,000 times or more
AC 200V/1.5A, AC 240V/1A (COSø = 0.7) 100,000 times or more
AC 200V/1A, AC 240V/0.5A (COSø = 0.35) 100,000 times or more
DC 24V/1A, DC 100V/0.1A (L / R = 7ms) 100,000 times or more
Response timeOff → On10ms or less
On → Off12ms or less
Common method4 points/COMP20 ~ 2F: 4 points/COM
P30 ~ 3F: 8 points/COM


Transistor output specification
ItemXBC- DN32H / XEC- DN(P)32HXBC- DN64H / XEC- DN(P)64H
Output point16 points32 points
Insulation methodPhoto coupler insulation
Rated load voltageDC 12/24V
Load voltage rangeDC 10.2 ~ 26.4 V
Max. load voltage0.5A / 1point (P20 ~ 23: 0.1A/point)
Off leakage current0.1mA or less
Max. inrush current4A/10ms or less
Max. voltage drop (On)DC 0.4V or less
Surge absorberZener Diode
Response timeOff → On1ms or less
On → Off1ms or less (Rated load, resistive load)
Common method4 points/COMP20 ~ 2F: 4 points/COM
P30 ~ 3F: 8 points/COM
External power supplyVoltageDC 12/24V ±10% (Ripple voltage 4 Vp-p or less)
Current10mA or less (DC 24V connection)

More Information

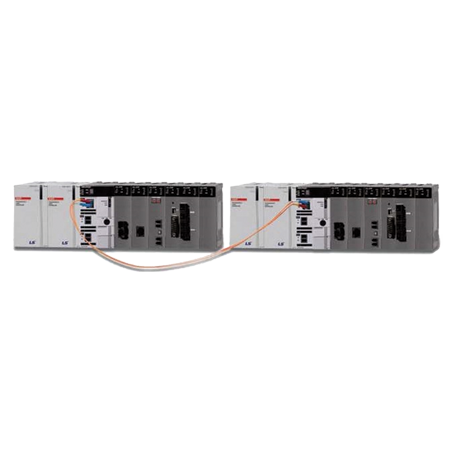

XGR-CPU

image image

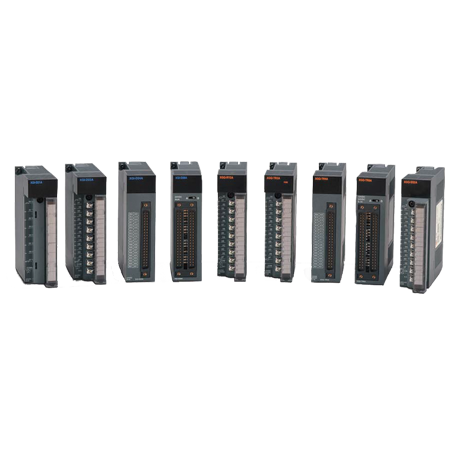

Mô-đun Ngõ Vào/Ngõ Ra XGT
