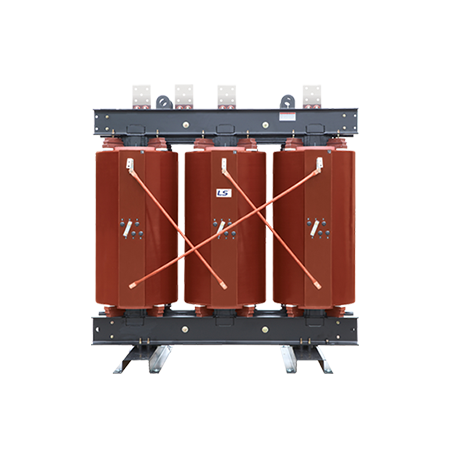

| Rating | Specification |
|---|
| Installation place | Indoor(Enclosure needed for outdoor) |
|---|
| Applicable standard | KS C 4311, IEC 60076-11, IEEE C57.12.01 |
|---|
| Frequency | 60, 50 |
|---|
| Insulation kind | F type, H type |
|---|
| Coil temperature rise | 100K, 125K |
|---|
| HV rated voltage(kV) | 33, 22, 10, 6 |
|---|
| HV tap voltage(V) | 5 Taps (±2x2.5%) |
|---|
| LV rated voltage | 400V |
|---|
| Angular displacement | Dyn11 |
|---|
| Impulse withstand voltage(kV) (HV/ LV) | 145 / -
170 / - | 95 / -
125 / - | 60 / -
75 / - | 40 / -
60 / - |
|---|
| Normal frequency withstand voltage(kV) (HV/ LV) | 70 / 3 | 50 / 3 | 28 / 3 | 20 / 3 |
|---|
| Rated capacity (kVA) | up to 3150 |
|---|
| Enclosure | IP 2X, IP 3X, IP 4X |
|---|
※ The above descriptions are standard specifications, but other specifications are available according to orders. (~36kV, ~25MVA)
