3 – Position Enable Switch
Clear Visibility
- Excellent visibility with high definition and wide screen view
- 1024 X 600 resolution
- 16M color

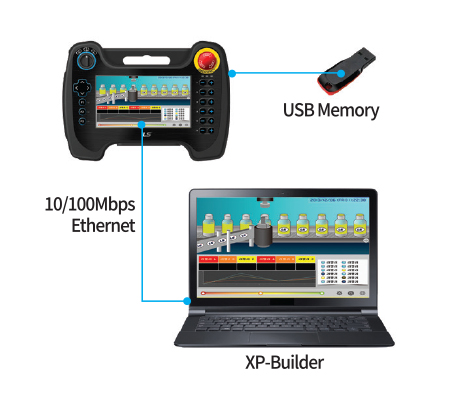

Project Transfer
- Easy project creation by XP-Builder
- Convenient downloading/uploading of project files via USB port and ethernet (Multi-language supported)
System configuration and features
Front
① TFT-LCD
1024 x 600 TFT LCD, 16.7M color display
Resistive overlay
② Emergency Stop Switch
Immediately stops the control device or turns off the power as a safety feature
③ Left Keypad
Direction key
F1, F2, F3: User defined
④ Right Keypad
User defined
* Generally used as shortcut key of each axis of robot.
⑤ Extension device
Slot of the USB extension device
• When shipped, it is fastened with a separate cover.
• When used, the cover can be removed witha Phillips head(+) screwdriver for use.
Device detail
⑥ Reset Switch
Switch for resetting the system
⑦ Debug Port
A debugging port for developers
⑧ USB Host
Connect to USB memory: Backup and send logging, recipe, alarm, and project data.
Connect to user interface: Use the mouse and keyboard.
⑨ USB Device(option)
USB device port(unsupported)
⑩ SD – Card
Software update
SD memory (store data)
Rear

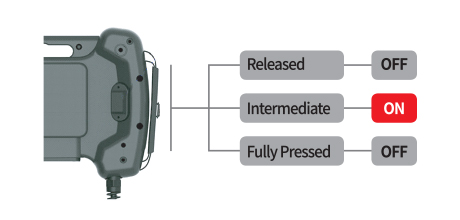

⑪ Enable Switch
Released : Disable
Intermediate : Enable
Fully Pressed : Disable
Junction box
① Ethernet Port
Ethernet : 10Base-T/100Base-TX/1000Base-T
• Connector for Ethernet connection
② Serial terminal block
RS-485/232C communication connector
• 0702D(for RS-232 model): Tx, Rx, GND
• 0704D(for RS-485 model): TRx+, TRx-
③ Switch 2 terminal block
Signal that is controlled from the front side switch of the product.
• Enable, Emergency(A contact, B contact) switch
④ Switch 1 terminal block
Signal that is controlled from the front side switch of the product.
• Enable, Emergency(A contact, B contact) switch
⑤ N.C
Not used
⑥ Power terminal block
DC 24 V input terminal block
