iV5

Optimized Solution for System Drive

Control the crane, elevator, and continuous line system based on powerful performance

High Performance Control system

Speed/Torque control, SIN/COS encoder, PM sensorless, auto tuning, endat encoder, draw/droop/process PID controls, built-in brake control.

User-friendly Interface

user-friendly keypads, various field bus options, and DriveView management

Various Option for System Application

Synchronize, SIN/COS encoder (Endat encoder), Extension I/O, EL I/O option

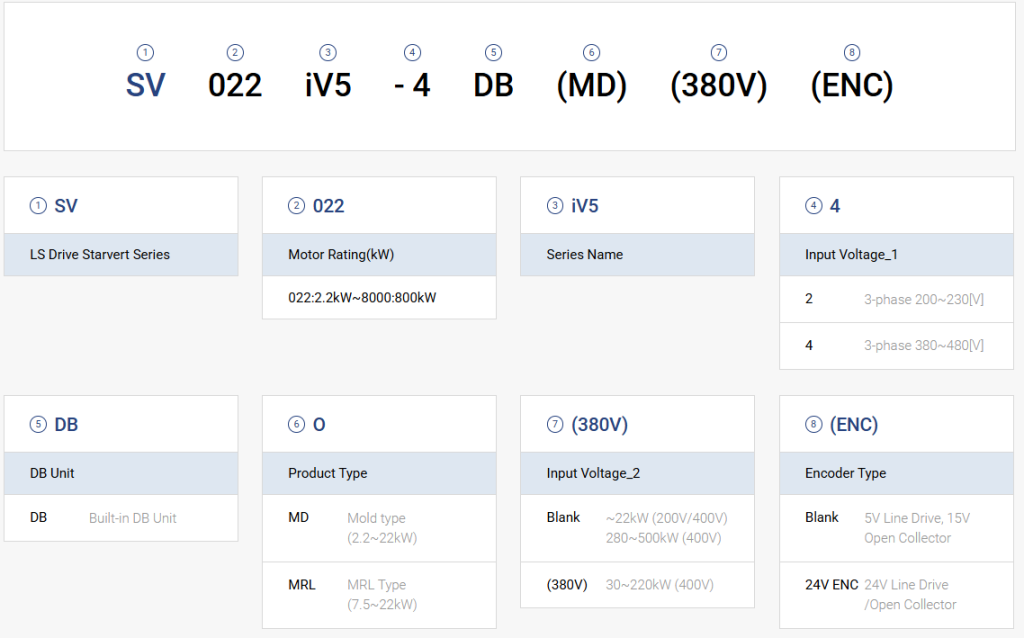

Type Designation

Specification - 200V Class
Type : SV[ ][ ][ ]iV5-2(DB)	022	037	055	075	110	150	185	220	300	370
Maximum applicable	[HP]	3	5	7.5	10	15	20	25	30	40	50
motor ranges 1)	[kW]	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37
Rated Output	Capacity[kVA] 2)	4.5	6.1	9.1	12.2	17.5	22.5	28.2	33.1	46	55
Rated Current [A]	12	16	24	32	46	59	74	88	122	146
Output speed	0 ~ 3600 (rpm)
Output voltage	0 ~ 200V(230V) 3)
Rated input	Voltage	3Ø 200 ~ 230V (-10% ~ +10%)
Frequency	50 ~ 60Hz (±5%)
Weight[Kg(Ibs)]	6(13)	6(13)	7.7(16.9)	7.7(16.9)	13.7(30.2)	13.7(30.2)	20.3(44.7)	20.3(44.7)	42(93)	42(93)

Specification - 200V Class

Type : SV[ ][ ][ ]iV5-2(DB)

022

037

055

075

110

150

185

220

300

370

Maximum applicable

[HP]

7.5

motor ranges 1)

[kW]

2.2

3.7

5.5

7.5

18.5

Rated Output

Capacity[kVA] 2)

4.5

6.1

9.1

12.2

17.5

22.5

28.2

33.1

Rated Current [A]

122

146

Output speed

0 ~ 3600 (rpm)

Output voltage

0 ~ 200V(230V) 3)

Rated input

Voltage

3Ø 200 ~ 230V (-10% ~ +10%)

Frequency

50 ~ 60Hz (±5%)

Weight[Kg(Ibs)]

6(13)

7.7(16.9)

13.7(30.2)

20.3(44.7)

42(93)

Specification - 400V Class (AC Power Input Type)
Type : SV[ ][ ][ ]iV5-4(DB)	022	037	055	075	110	150	185	220	300	370
Maximum applicable	[HP]	3	5	7.5	10	15	20	25	30	40	50
motor ranges	[kW]	2.2	3.7	5.5	7.5	11	15	18.5	22	30	37
Rated output	Capacity[kVA]	4.5	6.1	9.1	12.2	18.3	22.9	29.7	34.3	46	57
Rated Current [A]	6	8	12	16	24	30	39	45	61	75
Output speed	0 ~ 3600 (rpm)
Output voltage	0 ~ 380V(480V) 3)
Rated input	Voltage	3Ø 380 ~ 480V (-10% ~ +10%) 4)
Frequency	50 ~ 60Hz (±5%)
Weight[Kg(Ibs)]	6(13)	6(13)	7.7(16.9)	7.7(16.9)	13.7(30.2)	13.7(30.2)	20.3(44.7)	20.3(44.7)	42(93)	42(93)

Specification - 400V Class (AC Power Input Type)

Type : SV[ ][ ][ ]iV5-4(DB)

022

037

055

075

110

150

185

220

300

370

Maximum applicable

[HP]

7.5

motor ranges

[kW]

2.2

3.7

5.5

7.5

18.5

Rated output

Capacity[kVA]

4.5

6.1

9.1

12.2

18.3

22.9

29.7

34.3

Rated Current [A]

Output speed

0 ~ 3600 (rpm)

Output voltage

0 ~ 380V(480V) 3)

Rated input

Voltage

3Ø 380 ~ 480V (-10% ~ +10%) 4)

Frequency

50 ~ 60Hz (±5%)

Weight[Kg(Ibs)]

6(13)

7.7(16.9)

13.7(30.2)

20.3(44.7)

42(93)

Specification - 400V Class (AC Power Input Type)
Type : SV[ ][ ][ ]iV5-4(DB)	450	550	750	900	1100	1320	1600	2200	2800	3150	3750	5000	8000
Maximum applicable	[HP]	60	75	100	120	150	175	215	300	373	420	500	600	1067
motor ranges	[kW]	45	55	75	90	110	132	160	220	280	315	375	500	800
Rated output	Capacity[kVA]	70	85	116	140	170	200	250	329	416	468	557	732	1105
Rated Current [A]	91	110	152	183	223	264	325	432	546	614	731	960	1384
Output speed	0 ~ 3600 (rpm)
Output voltage	0 ~ 380V(460V) 3)
Rated input	Voltage	3Ø 380 ~ 480V (-10% ~ +10%) 4)
Frequency	50 ~ 60Hz (±5%)
Weight[Kg(Ibs)]	63 (139)	63 (139)	68 (150)	98 (216)	98 (216)	122 (269)	122 (269)	175 (386)	243 (536)	380 (838)	380 (838)	476 (1050)	589 (1300)

Specification - 400V Class (AC Power Input Type)

Type : SV[ ][ ][ ]iV5-4(DB)

450

550

750

900

1100

1320

1600

2200

2800

3150

3750

5000

8000

Maximum applicable

[HP]

100

120

150

175

215

300

373

420

500

600

1067

motor ranges

[kW]

110

132

160

220

280

315

375

500

800

Rated output

Capacity[kVA]

116

140

170

200

250

329

416

468

557

732

1105

Rated Current [A]

110

152

183

223

264

325

432

546

614

731

960

1384

Output speed

0 ~ 3600 (rpm)

Output voltage

0 ~ 380V(460V) 3)

Rated input

Voltage

3Ø 380 ~ 480V (-10% ~ +10%) 4)

Frequency

50 ~ 60Hz (±5%)

Weight[Kg(Ibs)]

63
(139)

68
(150)

98
(216)

122
(269)

175
(386)

243
(536)

380
(838)

476
(1050)

589
(1300)

Specification - 400V Class (DC Power Input Type)
SV [ ] [ ] [ ] iV5-4DC	055	075	110	150	185	220	300	370	450	550
Maximum applicable	[HP]	7.5	10	15	20	25	30	40	50	60	75
motor ranges 1)	[kW]	5.5	7.5	11	15	18.5	22	30	37	45	55
output	Capacity[kVA] 2)	9.1	12.2	18.3	22.9	29.7	34.3	46	57	70	85
Rated Current [A]	12	16	24	30	39	45	61	75	91	110
Speed	0 ~ 3600 (rpm)
Voltage	0 ~ 380V(480V) 3)
Input Rated Voltage	DC 540 ~ 680V(+10% ) 5)
Drive weight [Kg(Ibs)]	12(26)	12(26)	24(53)	24.5(54)	25(55)	25(55)	38.5(84)	38.5(84)	50(110)	50(110)

Specification - 400V Class (DC Power Input Type)

SV [ ] [ ] [ ] iV5-4DC

055

075

110

150

185

220

300

370

450

550

Maximum applicable

[HP]

7.5

motor ranges 1)

[kW]

5.5

7.5

18.5

output

Capacity[kVA] 2)

9.1

12.2

18.3

22.9

29.7

34.3

Rated Current [A]

110

Speed

0 ~ 3600 (rpm)

Voltage

0 ~ 380V(480V) 3)

Input Rated Voltage

DC 540 ~ 680V(+10% ) 5)

Drive weight [Kg(Ibs)]

12(26)

24(53)

24.5(54)

25(55)

38.5(84)

50(110)

Specification - 400V Class (DC power input type)
SV [ ] [ ] [ ] iV5-4DC	750	900	1100	1320	1600	2200	2800	3150	3750	5000
Maximum applicable	[HP]	100	120	150	175	215	300	373	420	500	666
motor ranges 1)	[kW]	75	90	110	132	160	220	280	315	375	500
output	Capacity[kVA] 2)	116	140	170	200	250	329	416	468	557	732
Rated Current [A]	152	183	223	264	325	432	546	614	731	960
Speed	0 ~ 3600 (rpm)
Voltage	0 ~ 380V(480V) 3)
Input rated Voltage	DC 540 ~ 680V(+10% ) 5)
Drive weight [Kg(Ibs)]	55 (121)	79 (174)	79 (174)	98.5 (217)	98.5 (217)	154.5 (340)	206 (454)	343 (756)	343 (756)	466 (1028)

Specification - 400V Class (DC power input type)

SV [ ] [ ] [ ] iV5-4DC

750

900

1100

1320

1600

2200

2800

3150

3750

5000

Maximum applicable

[HP]

100

120

150

175

215

300

373

420

500

666

motor ranges 1)

[kW]

110

132

160

220

280

315

375

500

output

Capacity[kVA] 2)

116

140

170

200

250

329

416

468

557

732

Rated Current [A]

152

183

223

264

325

432

546

614

731

960

Speed

0 ~ 3600 (rpm)

Voltage

0 ~ 380V(480V) 3)

Input rated Voltage

DC 540 ~ 680V(+10% ) 5)

Drive weight [Kg(Ibs)]

55
(121)

79
(174)

98.5
(217)

154.5
(340)

206
(454)

343
(756)

466
(1028)

Specification - 400V Class (MRL)
SV [ ] [ ] [ ] iV5-4(MRL)	075	110	150	220
Maximum applicable	[HP]	10	15	20	30
motor ranges	[kW]	7.5	11	15	22
Rated output	Capacity[kVA] 2)	13.7	20.6	27.5	39.6
Rated Current [A]	18	27	36	52
Output speed	0 ~ 200 (rpm)
Output voltage	380V~480V 3)
Rated input	Voltage	3Ø 380 ~ 480V (-10% ~ +10%)
Frequency	50~60Hz (±5%)
Weight[Kg(Ibs)]	14(30.8)	14(30.8)	18.7(41)	19(41.8)

Specification - 400V Class (MRL)

SV [ ] [ ] [ ] iV5-4(MRL)

075

110

150

220

Maximum applicable

[HP]

motor ranges

[kW]

7.5

Rated output

Capacity[kVA] 2)

13.7

20.6

27.5

39.6

Rated Current [A]

Output speed

0 ~ 200 (rpm)

Output voltage

380V~480V 3)

Rated input

Voltage

3Ø 380 ~ 480V (-10% ~ +10%)

Frequency

50~60Hz (±5%)

Weight[Kg(Ibs)]

14(30.8)

18.7(41)

19(41.8)
