Dual PID
When additional PID control or cascade PID control is required, dual PID provide users with various uses of the system with only iP5A.
Multi Motor Control
The built-in algebra control function enables an inverter to control motors without a controller so that user can take advantage of energy-saving and lower costs.

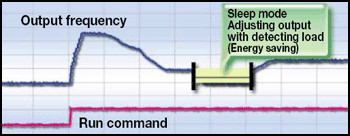

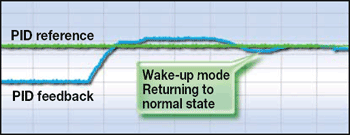

Sleep and Wake-Up
The built-in energy saving function makes the inverter stop automatically when the capacity is too low.
Pre-Heater
The built-in pre-heater function prevents motor damage and inverter break-down caused from humidity.
Flying Start
When the inverter drives many ventilators or when the fan in a big load system turns due to a natural displacement, iP5A operates the motor by automatically searching for the motor speed.

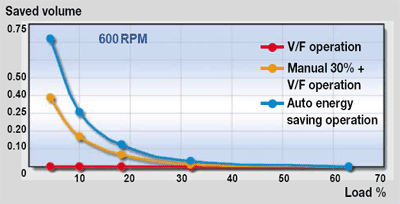

Auto energy saving
iP5A provides the auto energy saving function by an optimal flux control which minimizes energy loss caused by load change.
Improved Management from Instant Power-off and Power Dip Generation
During the power dip or instant power-off, which is generated by lightening, ground fault, and power-failure, loads still keep the mechanical energy and this energy flows back to inverter by regeneration. The power-failure guarantee time is extended by using this electrical character of the inverter.
Constant and Stable Performance (24 hours 365 days)
Regardless of outside alteration such as input voltage variation by load change or weather effect, iP5A can handle motor and load with best performance.
Safety Stop
When unexpected power-failure blocks the power supply, the inverter stops the motor by using energy of the load that prevents reoccurrence of accidents (Parameter setting is required).

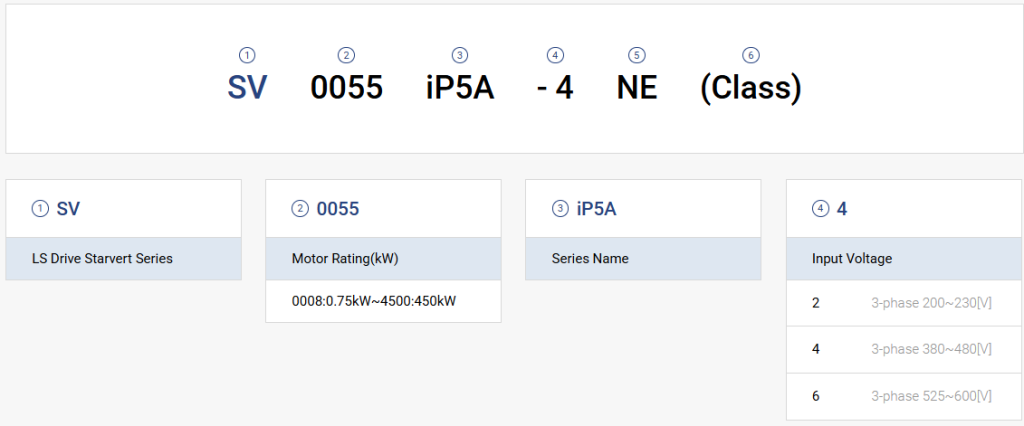

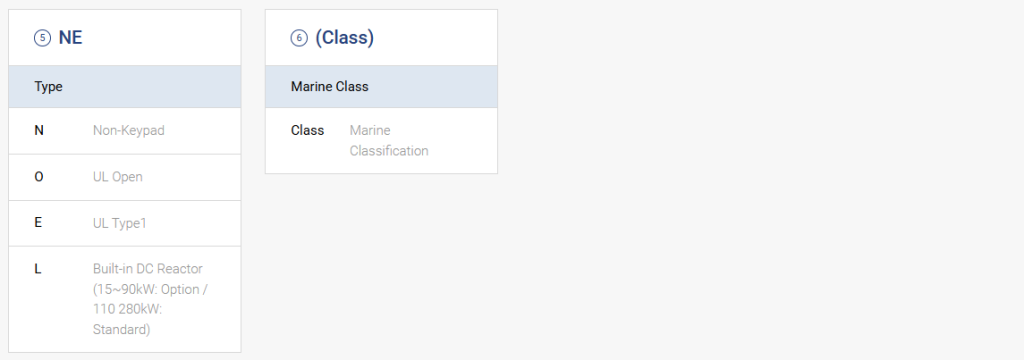

Type Designation
