G100/G100C

1. Enhanced Reliability

Built-in EMC Filter

Built-in Safety Torque Off (STO)

Reinforced Material Design

MIL217PLUS based Design

UL 61800-5-1 Design

2. High Performance

Application Adaptability

Enhanced V/F Performance

More Powerful Sensorless Control function

3. User Convenience

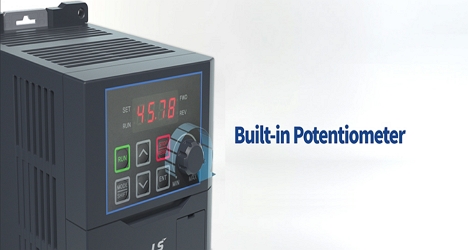

Built-in Potentiometer

DIN rail Mountable (below 4kW)

Output 2 Relays

Quick Parameter Setting Group

Various Communication Options

Easy to connect to Peripherals (SMART Copier connection)

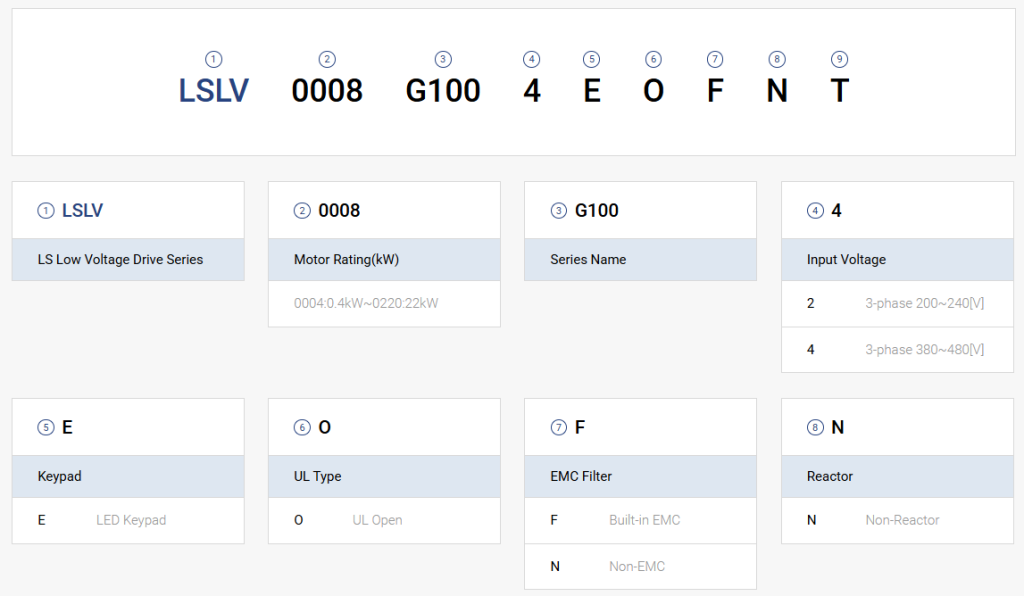

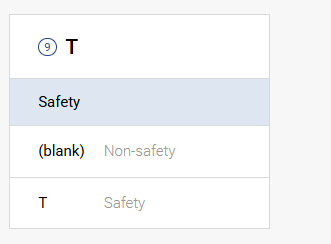

Type Designation

G100(C)-2	0004	0008	0015	0022	0040	0055	0075	0110	0150	0185	0220
Motor Rating	Heavy Duty (HD)	(HP)	0.5	1.0	2.0	3.0	5.4	7.5	10	15	20	25	30
(kW)	0.4	0.75	1.5	2.2	4.0	5.5	7.5	11	15	18.5	22
Normal Duty (ND)	(HP)	1.0	2.0	3.0	5.4	7.5	10	15	20	25	30	-
(kW)	0.75	1.5	2.2	4.0	5.5	7.5	11	15	18.5	22	-
Output Rating	Capacity [kVA]	Heavy Duty (HD)	1.0	1.9	3.0	4.2	6.5	9.1	12.2	17.9	22.9	28.6	33.5
Normal Duty (ND)	1.2	2.3	3.8	4.6	6.9	11.4	15.2	21.3	26.7	31.2	-
Rated Current (3-Phase Input) [A]	Heavy Duty (HD)	2.5	5.0	8.0	11.0	17.0	24.0	32.0	47	60	75	88
Normal Duty (ND)	3.1	6.0	9.6	12.0	18.0	30.0	40.0	56	70	82	-
Rated Current (1-Phase Input) [A]	Heavy Duty (HD)	1.5	2.8	4.6	6.1	9.3	12.8	17.4	26.8	34	41	48
Normal Duty (ND)	1.9	3.6	5.9	6.7	9.8	16.3	22.0	31	38	45	-
Frequency [Hz]	0~400Hz (IM sensorless: 0~120Hz)	0~400Hz (IM sensorless: 0~120Hz)
Voltage [V]	3-Phase 200~240V	3-Phase 200~240V
Input Rating	Voltage [V]	3-Phase 200~240VAC (-15%~+10%)	3-Phase 200~240VAC (-15%~+10%)
Frequency [Hz]	50~60Hz (±5%)	50~60Hz (±5%)
Rated Current [A]	Heavy Duty (HD)	2.2	4.9	8.4	11.8	18.5	25.8	34.9	53.2	68.4	85.5	101.6
Normal Duty (ND)	3.0	6.3	10.8	13.1	19.4	32.7	44.2	63.8	79.8	94.6	-
Weight [kg]	Non-EMC Filter Type	1.04	1.06	1.36	1.4	1.89	3.08	3.21	4.84	7.6	11.18	11.1
G100C	0.81	0.83	1.10	1.13	-	-	-	-	-	-	-

G100(C)-2

0004

0008

0015

0022

0040

0055

0075

0110

0150

0185

0220

Motor Rating

Heavy Duty (HD)

(HP)

0.5

1.0

2.0

3.0

5.4

7.5

(kW)

0.4

0.75

1.5

2.2

4.0

5.5

7.5

18.5

Normal Duty
(ND)

(HP)

1.0

2.0

3.0

5.4

7.5

(kW)

0.75

1.5

2.2

4.0

5.5

7.5

18.5

Output Rating

Capacity [kVA]

Heavy Duty (HD)

1.0

1.9

3.0

4.2

6.5

9.1

12.2

17.9

22.9

28.6

33.5

Normal Duty (ND)

1.2

2.3

3.8

4.6

6.9

11.4

15.2

21.3

26.7

31.2

Rated Current
(3-Phase Input) [A]

Heavy Duty (HD)

2.5

5.0

8.0

11.0

17.0

24.0

32.0

Normal Duty (ND)

3.1

6.0

9.6

12.0

18.0

30.0

40.0

Rated Current
(1-Phase Input) [A]

Heavy Duty (HD)

1.5

2.8

4.6

6.1

9.3

12.8

17.4

26.8

Normal Duty (ND)

1.9

3.6

5.9

6.7

9.8

16.3

22.0

Frequency [Hz]

0~400Hz (IM sensorless: 0~120Hz)

Voltage [V]

3-Phase 200~240V

Input Rating

Voltage [V]

3-Phase 200~240VAC (-15%~+10%)

Frequency [Hz]

50~60Hz (±5%)

Rated Current [A]

Heavy Duty (HD)

2.2

4.9

8.4

11.8

18.5

25.8

34.9

53.2

68.4

85.5

101.6

Normal Duty (ND)

3.0

6.3

10.8

13.1

19.4

32.7

44.2

63.8

79.8

94.6

Weight [kg]

Non-EMC Filter Type

1.04

1.06

1.36

1.4

1.89

3.08

3.21

4.84

7.6

11.18

11.1

G100C

0.81

0.83

1.10

1.13

G100(C)-4	0004	0008	0015	0022	0040	0055	0075	0110	0150	0185	0220
Motor Rating	Heavy Duty (HD)	(HP)	0.5	1.0	2.0	3.0	5.4	7.5	10	15	20	25	30
(kW)	0.4	0.75	1.5	2.2	4.0	5.5	7.5	11	15	18.5	22
Normal Duty (ND)	(HP)	1.0	2.0	3.0	5.0	7.5	10	15	20	25	30	40
(kW)	0.75	1.5	2.2	4.0	5.5	7.5	11	15	18.5	22	30
Output Rating	Capacity [kVA]	Heavy Duty (HD)	1.0	1.9	3.0	4.2	6.5	9.1	12.2	18.3	23.6	29.7	34.3
Normal Duty (ND)	1.5	2.4	3.9	5.3	7.6	12.2	17.5	23.6	29.0	34.3	46.5
Rated Current (3-Phase Input) [A]	Heavy Duty (HD)	1.3	2.5	4.0	5.5	9.0	12.0	16.0	24	31	39	45
Normal Duty (ND)	2.0	3.1	5.1	6.9	10.0	16.0	23.0	31	38	45	61
Rated Current (1-Phase Input) [A]	Heavy Duty (HD)	0.7	1.4	2.1	2.8	4.9	6.4	8.7	15	18	23	27
Normal Duty (ND)	1.3	1.9	2.8	3.6	5.4	8.7	12.6	18	23	27	35
Frequency [Hz]	0~400Hz (IM sensorless: 0~120Hz)	0~400Hz (IM sensorless: 0~120Hz)
Voltage [V]	3-Phase 380~480V	3-Phase 380~480V
Input Rating	Voltage [V]	3-Phase 380~480VAC (-15%~+10%)	3-Phase 380~480VAC (-15%~+10%)
Frequency [Hz]	50~60Hz (±5%)	50~60Hz (±5%)
Rated Current [A]	Heavy Duty (HD)	1.1	2.4	4.2	5.9	9.8	12.9	17.5	27.2	35.3	44.5	51.9
Normal Duty (ND)	2.0	3.3	5.5	7.5	10.8	17.5	25.4	35.3	45.3	51.9	70.8
Weight [kg]	EMC Filter Type	1.04 (1.04)	1.06 (1.08)	1.36 (1.44)	1.4 (1.46)	1.89 (1.98)	3.08 (3.24)	3.21 (3.28)	4.89 (5.04)	4.91 (5.06)	7.63 (7.96)	7.65 (7.98)
G100C	0.82	0.85	1.14	1.14	-	-	-	-	-	-	-

G100(C)-4

0004

0008

0015

0022

0040

0055

0075

0110

0150

0185

0220

Motor Rating

Heavy Duty (HD)

(HP)

0.5

1.0

2.0

3.0

5.4

7.5

(kW)

0.4

0.75

1.5

2.2

4.0

5.5

7.5

18.5

Normal Duty
(ND)

(HP)

1.0

2.0

3.0

5.0

7.5

(kW)

0.75

1.5

2.2

4.0

5.5

7.5

18.5

Output Rating

Capacity [kVA]

Heavy Duty (HD)

1.0

1.9

3.0

4.2

6.5

9.1

12.2

18.3

23.6

29.7

34.3

Normal Duty (ND)

1.5

2.4

3.9

5.3

7.6

12.2

17.5

23.6

29.0

34.3

46.5

Rated Current
(3-Phase Input) [A]

Heavy Duty (HD)

1.3

2.5

4.0

5.5

9.0

12.0

16.0

Normal Duty (ND)

2.0

3.1

5.1

6.9

10.0

16.0

23.0

Rated Current
(1-Phase Input) [A]

Heavy Duty (HD)

0.7

1.4

2.1

2.8

4.9

6.4

8.7

Normal Duty (ND)

1.3

1.9

2.8

3.6

5.4

8.7

12.6

Frequency [Hz]

0~400Hz (IM sensorless: 0~120Hz)

Voltage [V]

3-Phase 380~480V

Input Rating

Voltage [V]

3-Phase 380~480VAC (-15%~+10%)

Frequency [Hz]

50~60Hz (±5%)

Rated Current [A]

Heavy Duty (HD)

1.1

2.4

4.2

5.9

9.8

12.9

17.5

27.2

35.3

44.5

51.9

Normal Duty (ND)

2.0

3.3

5.5

7.5

10.8

17.5

25.4

35.3

45.3

51.9

70.8

Weight [kg]

EMC Filter Type

1.04
(1.04)

1.06
(1.08)

1.36
(1.44)

1.4
(1.46)

1.89
(1.98)

3.08
(3.24)

3.21
(3.28)

4.89
(5.04)

4.91
(5.06)

7.63
(7.96)

7.65
(7.98)

G100C

0.82

0.85

1.14

Control Method	V/F, Slip Compensation, Sensorless Vector Frequency Setting
Frequency Setting Resolution	Digital command: 0.01Hz Analog command: 0.06Hz(maximum frequency: 60 Hz)
Frequency Accuracy	1% of the maximum output frequency
V/F Pattern	Linear, squared, user V/F
Overload Capacity	HD: 150% 1 minute, ND: 120% 1minute
Torque Boost	Manual/Automatic torque boost

Control Method

V/F, Slip Compensation, Sensorless Vector Frequency Setting

Frequency Setting Resolution

Digital command: 0.01Hz
Analog command: 0.06Hz(maximum frequency: 60 Hz)

Frequency Accuracy

1% of the maximum output frequency

V/F Pattern

Linear, squared, user V/F

Overload Capacity

HD: 150% 1 minute, ND: 120% 1minute

Torque Boost

Manual/Automatic torque boost

Operation Mode	Select key pad, terminal strip, or communication operation
Frequency Setting	Analog: -10~10[V], 0~10[V], 4~20[mA] Digital: Keypad
Operation Function	PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire mode
Input	Multi-Function Terminal (5 Points)	NPN (Sink) / PNP (Source) Selectable
Function: Forward run, Reverse run, Reset, External trip, Emergency stop, Jog operation, Multi-step frequency-high, middle, low, Multi-step acceleration/ deceleration-high, middle, low, DC braking at stop, 2nd motor select, Frequency up/down, 3-wire operation, Change into normal operation during PID operation Change into main body operation during option operation, Analog command frequency fixing, Acceleration/deceleration stop etc. Selectable
Analog Input	V1: -10~10V, I2 4~20mA
Output	Multi-function Relay Terminal	Fault output and drive operation status output	(N.O., N.C.) less than AC 250V 1A, less than DC 30V 1A
Analog Output	0~12Vdc: Frequency, Output current, Output voltage, DC stage voltage etc. selectable

Operation Mode

Select key pad, terminal strip, or communication operation

Frequency Setting

Analog: -10~10[V], 0~10[V], 4~20[mA]
Digital: Keypad

Operation Function

PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation,
Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking,
Frequency jump, Slip compensation, Automatic restart, Automatic tuning,
Energy buffering, Flux braking, Fire mode

Input

Multi-Function Terminal
(5 Points)

NPN (Sink) / PNP (Source) Selectable

Function: Forward run, Reverse run, Reset, External trip, Emergency stop, Jog operation,
Multi-step frequency-high, middle, low, Multi-step acceleration/ deceleration-high, middle, low,
DC braking at stop, 2nd motor select, Frequency up/down, 3-wire operation,
Change into normal operation during PID operation Change into main body operation during option operation,
Analog command frequency fixing, Acceleration/deceleration stop etc. Selectable

Analog Input

V1: -10~10V, I2 4~20mA

Output

Multi-function Relay Terminal

Fault output and drive operation status output

(N.O., N.C.) less than AC 250V 1A, less than DC 30V 1A

Analog Output

0~12Vdc: Frequency, Output current, Output voltage, DC stage voltage etc. selectable

Trip	Over current trip, external signal trip, ARM short current fault trip, over heat trip, input imaging trip, ground trip, motor over heat trip, I/O board link trip, no motor trip, parameter writing trip, emergency stop trip, command loss trip, external memory error, CPU watchdog trip, motor light load trip	Over voltage trip, temperature sensor trip, inverter over heat, option trip, output image trip, inverter overload trip, fan trip, pre-PID operation failure external brake trip, low voltage trip during operation, low voltage trip, analog input error, motor overload trip, over torque trip, under torque trip
Alarm	Command loss trip warning, overload warning, light load warning, inverter overload warning, fan operation warning, braking resistance braking rate warning, rotor time constant tuning error, inverter pre-overheat warning, over torque warning, under torque warning
Momentary Power Loss	HD below 15ms (ND below 8ms): Continuous operation (To be within rated input voltage, rated output) HD above 15ms (ND above 8ms): Automatic restart operation enable

Trip

Over current trip, external signal trip, ARM short
current fault trip, over heat trip, input imaging trip,
ground trip, motor over heat trip,
I/O board link trip, no motor trip, parameter writing trip,
emergency stop trip, command loss trip,
external memory error, CPU watchdog trip,
motor light load trip

Over voltage trip, temperature sensor trip,
inverter over heat, option trip,
output image trip, inverter overload trip,
fan trip, pre-PID operation
failure external brake trip,
low voltage trip during operation, low voltage trip,
analog input error, motor overload trip,
over torque trip, under torque trip

Alarm

Command loss trip warning, overload warning, light load warning, inverter overload warning,
fan operation warning, braking resistance braking rate warning, rotor time constant tuning error,
inverter pre-overheat warning, over torque warning, under torque warning

Momentary Power Loss

HD below 15ms (ND below 8ms): Continuous operation (To be within rated input voltage,
rated output) HD above 15ms (ND above 8ms): Automatic restart operation enable

Cooling Type	Forced fan cooling structure
Protection Degree	IP20/UL Open (Default), UL Enclosed type 1 (Option)
Ambient Temperature	Ambient temperature under the condition of no ice or frost. HD: -10~50℃(14~122°F) / ND: -10~40℃(14~104°F) [However, recommended to use load below 80% when using at 50°C under light load]
Humidity	Relative humidity below 95% RH (no dew formation)
Storage Temperature	-20~65℃(-4~149°F)
Location	No corrosive gas, flammable gas, oil mist and dust etc. indoors (Pollution degree 2 environment)
Altitude, Vibration	Below 1,000m (From 1000 to 4000m, the rated input voltage and rated output current of the drive must be derated by 1% for every 100m.), below 9.8m/sec2 (1G)
Pressure	70~106kPa

Cooling Type

Forced fan cooling structure

Protection Degree

IP20/UL Open (Default), UL Enclosed type 1 (Option)

Ambient Temperature

Ambient temperature under the condition of no ice or frost.
HD: -10~50℃(14~122°F) / ND: -10~40℃(14~104°F)
[However, recommended to use load below 80% when using at 50°C under light load]

Humidity

Relative humidity below 95% RH (no dew formation)

Storage Temperature

-20~65℃(-4~149°F)

Location

No corrosive gas, flammable gas, oil mist and dust etc. indoors (Pollution degree 2 environment)

Altitude, Vibration

Below 1,000m (From 1000 to 4000m, the rated input voltage and rated output current
of the drive must be derated by 1% for every 100m.), below 9.8m/sec2 (1G)

Pressure

70~106kPa

Smart power solution

Smart automation solution

Quotation request

Customer service

Documents

Recruitment

Announcement

G100/G100C

Features

Type Designation

Specification

3-Phase 200V Class (0.4~22kW)

3-Phase 400V Class (0.4~22kW)

Control

Operation

Protective Function

Environment

More Information

iG5A

iE5

iC5 (EOL)

Company

Support

network

Map

Hanoi Office

Hai Phong

Da Nang

Ho Chi Minh Office

Smart power solution

Smart automation solution

Quotation request

Customer service

Documents

Recruitment

Announcement

G100/G100C

Features

Type Designation

Specification

3-Phase 200V Class (0.4~22kW)

3-Phase 400V Class (0.4~22kW)

Control

Operation

Protective Function

Environment

More Information

iG5A

iE5

iC5 (EOL)

Company

Support

network

Map

Hanoi Office

Hai Phong

Da Nang

Ho Chi Minh Office

Log in
