XGT Network module

Contact us

Features

Cung cấp nhiều giải pháp mạng Ethernet và serial khác nhau

Hệ thống mạng tốc độ cao và dung lượng dữ liệu lớn

Chỉnh sửa giao thức và cài đặt tham số mạng dễ dàng với phần mềm XG5000

Độ tin cậy cao: Hệ thống vòng (RAPIEnet)

Nhiều chức năng chẩn đoán và thông tin trạng thái mạng

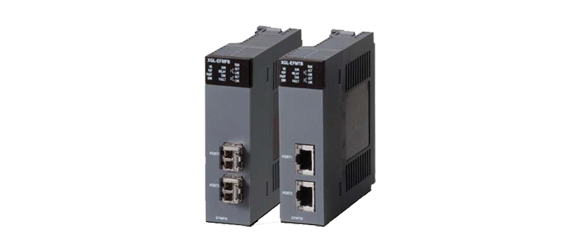

Hệ thống Ethernet XGT (XGL-EFMTB, XGL-EFMFB)

  • Hỗ trợ tốc độ truyền tối đa 1Gbps

Hỗ trợ 1 kênh, 2 cổng

  • Cấu hình dạng tuyến (Line topology) với thiết lập tham số relay
  • Hai cổng (T.Pair / F.Optic)
  • Tải giao tiếp tối đa theo chuẩn máy chủ: 5.000pps
  • Mô-đun cáp quang (XGL-EFMTB) có đầu nối có thể thay thế, tốc độ truyền nâng cấp lên 1Gbps, dễ bảo trì
  • Hỗ trợ cả phiên bản cũ và mới của XG5000
  • Giao diện người dùng (UI) khung dữ liệu do người dùng định nghĩa được cải tiến, dễ sử dụng hơn
  • Chức năng log được tăng cường giúp chẩn đoán đa dạng hơn
  • Hỗ trợ giao thức Ethernet mở và giao thức chuyên dụng (RAPIEnet)

Specification

ItemProduct Name
XGL-EFMTBXGL-EFMFB
Transmission SpecificationBaud rate10/100/1000Mbps100/1000Mbps
Transmission TypeBase Band
Max. extended length between nodes100m(Node-Hub)2km
Max. segment length--
Max. number of nodesHub connection(Up to 9 recommended)30/Segments
Distance between nodes-Integral times of 0.5m
Max. protocol size1,500 Byte
Access method to service zoneCSMA/CD
Frame error checkCRC 16 = X15+X14+X13+....+X2+X+1
Basic SpecificationCurrent consumption (5V)100Mbps560mA750mA★
1Gbps900mA740mA★
Weight146 g156 g-

XGT Computer-Link (XGL-C22B, XGL-CH2B, XGL-C42B)

Features

  • Smart server recognizes the protocol (XGT dedicated communication or Modbus RTU/ASCII) automatically and activates
  • Repeater mode may be used use as an insulated repeater or convert RS-232C to RS422/485
  • Contains a built- in termination resistor and can be set in the basic parameter window
  • Easy protocol editing and communication parameter setting: XG5000
  • Long-distance communication via modem connection
  • Dedicated protocol for multi-drop configuration connectable up to 32 units
  • Flexible communication speed setting (300~115,200bps)
  • Supports full duplex and half duplex communication
  • Max. 12 modules available in one CPU
  • Various connection to MMI S/W (XGT, Modbus RTU, Modbus ASCII)
  • Various diagnosis functions using XG5000 (I/O, link status, service status)
  • Supports simultaneously dedicated service in remote connection

Specifications

ItemSpecification
XGL-C22BXGL-CH2BXGL-C42B
Serial communicat-ion channelRS-232C2 channels1 channel-
Conforms to RS-232C standard
Line config1:1
RS-422/485-1 channel2 channels
Conforms to RS-422/485 standards
Line config1:1, 1:n, n:1
Modem connection functionRemote communication with external devices is available via public telephone line by connecting external modem to the module.-
Operating mode
(specified per port)		P2PXGT client, Modbus ASCII/RTU client, Use defined communication
SERVERXGT server, Modbus ASCII/RTU server
Data typeStart Bit1
Data Bit7 or 8
Stop Bit1 or 2
ParityEven/Odd/None
Synchronization typeAsynchronous type
Detecting errorBYTE SUM, WORD SUM, BYTE XOR, DLE AB, DLE SIEMENS, LSIS CRC, CRC 16, BYTE SUM 2’ COMP, BYTE SUM 1’s COMP 7BIT SUM, 7BIT XOR, CRC 16 IBM, CRC 16 CCITT
Transmission speed (bps)300 / 600 / 1,200 / 1,800 / 2,400 / 3,600 / 4,800 / 7,200 / 9,600/19,200 / 38,400 / 57,600 / 64,000 / 76,800 / 115,200bps
Station No. settingSetting range : 0-31, Max. station No. : 32 stations
Transmission Distance(m)RS-232C: Max.15 (extendible if modem used)-
-RS-422/485: Max. 1,200m
Diagnosis functionStatus LED diagnosis XG5000 diagnosis service(Frame monitor, Status by service, Loop-Back diagnosis) History, Saving history
Appearance size(mm)98(H) X 27(W) X 90(D)
Current consumption(mA)420480520
Weight(g)121119116

XGT DeviceNet system (XGL-DMEB)

Features

  • DeviceNet protocol
  • Direct control of various I/O devices via Dnet system
  • Max. 63 slave modules controlled by one master module
  • Flexibility in network configuration: Multi-drop and T branch connection
  • Connectable to other master module and various slave modules
  • Provides an ‘ Auto Network Scan’ function and various information with configuration tools (N Configurator)
  • Communicates a high-speed link parameter
  • Connectable to various slave I/O including other module
    (Common I/O, Actuator, Switch, Optical switch, Valve, Inverter, A/D module, Position controller etc..)
  • Automatic monitoring of slave modules in the network: Auto-scan (XG5000)
  • Easy expansion: Up to 12 master modules
  • Network setting by N Configurator/XG5000 (Parameter setting, diagnosis and monitoring)

Specifications

ItemPerformance Specifications
Transmission
Specification		Transmission Speed (kbps)125/250/500
Transmission TypeI/O ConnectionG2, UCMM
I/O CommunicationPoll, Bit strobe, COS, Cyclic
Communication distance(m)Thick Cable500 (125kbps)/250 (250kbps)/100 (500kbps)
Thin Cable100 (125/250/500kbps)
Terminal resistance (W)121 (1%, 1/4W)
Max.drop length(m)125 kbps6 (Max. extended length 156)
250 kbps6 (Max. extended length 78)
500 kbps6 (Max. extended length 39)
Data Packet0~8 Bytes
Message Access ControlCSMA/NBA
Network StructureTrunk/drop line
Power/Signal cable inside the identical network cable
Bus TypePoll type
Max. number of nodsUp to 64 (including master) MAC IDs (MAC Identifier)
System FeaturesInsertion and removal of nod available in voltage On status
Operation VoltageDC 24V
Diagnosis FunctionModule: Checks duplicated station/ Checks CRC error
N Configurator: Detects defective station/Checks BusOff/Auto-scan function XG5000: Monitors High-speed link
Master/Slave OperationAvailable only in master
Parameter setting 1) N Configurator (CONFIG Port of Dnet I/F)
2) Setting to High-speed link of XG5000 (RS-232C of CPU module or USB port)
XG5000
(High -speed link)		Data process unitByte
Send/Receive periodSelect among 20ms, 50ms, 100ms, 200ms, 500ms, 1s, 5s and 10s - Default : 20ms
Max. communication pointSend 128,520points, Receive 128,520 points, 16,065 bytes respectively
Max. block number63 (Setting range: 0~62)
Max. point number per block2040 points (255 bytes)
Basic SpecificationMax. modules installedUp to 12 (available on basic base and added base)
Internal-consumed current (mA)350mA
Weight (g)81g

XGT Profibus-DP [Pnet] system

Features

  • Profibus-DP protocol
  • Communicates amongst  a master automation device and distributed slave I/O device
  • Fast slave communication without an application layer
  • Transmission speed: 9.6Kbps ~ 12Mbps
  • Transmission distance: Max. 1,200m
  • Max. 126 slave stations available (32 stations per segment)
  • Network setting using N Configurator/XG5000 (Parameter setting, diagnosis and monitoring)
  • I/O data of master station: 7 kbytes
  • Automatic monitoring of slave modules in the network: Auto-scan (XG5000)
  • Multi master
  • Easy configuration tool: N Configurator / XG5000

Specifications

ItemXGL-PMEB
Module TypeMaster
Network TypeProfibus-DP
StandardEN50170/DIN19245
InterfaceRS-485 (Electric)
Transmission RouteBus type
Modulation TypeNRZ
MACLocal Token Ring
Max. Distance & Transmission SpeedDistance (m)Transmission Speed (bps)
1,2009.6k/19.2k/31.25k/45.45k/93.7k
1,000187.5k
400500k
2001.5M
1003M/6M/12M
Max. number of stations per network126
Max. number of stations per segment32 (including master & repeater)
Max. number of modules per node24 modules
Cable usedElectric-twist shielded pair cable
Max. communication size7 KB
Max. size per slave244 bytes
Max. number of units to be installedXGK-CPUH/XGI-CPUUXGK-CPUS/CPUA/CPUE
1212
Installation PositionXGK-CPUH/XGI-CPUUXGK-CPUS/CPUA/CPUE
Basic base ~ expansion stage 7Basic base ~ expansion stage 3
Communication Parameters to setXG5000 , SyCon (XGL-PMEA Dedicated Configuration Tool), N Configurator (XGL-PMEB/C Dedicated Configuration Tool)
Internal-consumed current(mA)500
Weight (g)88


ItemXGL-PSEA
StandardEN50170 / DIN 19245
InterfaceRS-485 (Electric)
Media accessPolling
TopologyBus
ModulationNRZ
Network InterfaceAuto baud rate
Master / SlaveSlave
Max. number of slave per network99
Max. number of slave per segment32
CableShield twisted pair cable
Max. I/O data244 byte
Configuration toolXG5000
Transmission
distance
and speed		Trans. speed(kbps)9.619.293.75187.5500
Max. network length(m)1200120012001000400
Trans. speed(kbps)15003000600012000-
Max. network length(m)200100100100-
Max num. of node99(0~98)
Max num. of transmission block24
Max num. of installation12ea (XGR: Max. 6ea)
InstallationXGK-CPUU/H, XGI-CPUUMain base ~ 7th Expansion base
XGK-CPUE, XGI-CPUEMain base ~ 1st Expansion base
XGK-CPUA/S, XGI-CPUH/SMain base ~ 3rd Expansion base
XGR-CPUH/F, XGR-CPUH/TMain base
Current consumption (mA)410
Weight (g)103


ItemXGL-PSRA
StandardEN50170 / DIN 19245
InterfaceRS-485(Electric)
Media accessPolling
TopologyBus
ModulationNRZ
Network InterfaceAuto baud rate
Master / SlaveSlave
Max. number of slave per network100
Max. number of slave per segment32
CableShield twisted pair cable
Max. number of communication points244 byte
Transmission
distance
and speed		Trans. speed(kbps)9.619.293.75187.5500
Max. network length(m)1200120012001000400
Trans. speed(kbps)15003000600012000-
Max. network length(m)200100100100-
Max num. of node100(0~99)
Max. number of installation12
Max. digital I/O768
Max Analog I/O ChannelInput : 122ch. / Output : 96ch
Current consumption (mA)600
Weight (g)114
