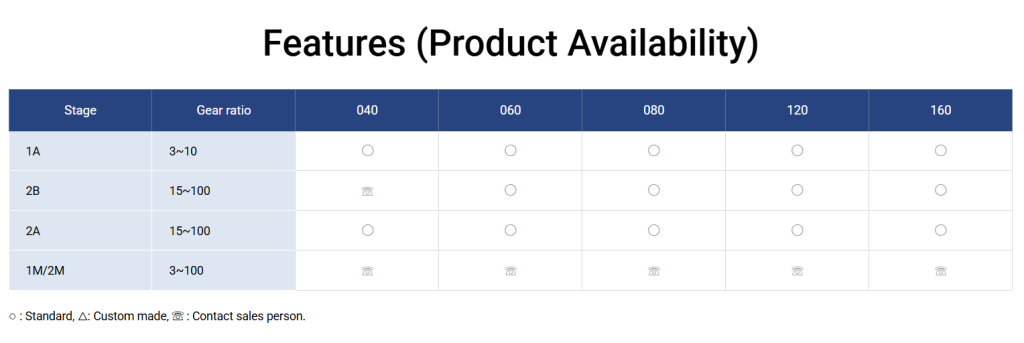

| Division | Stage | Gear ratio | 040 | 060 | 080 | 120 | 160 |
|---|
| Nominal Output Torque (Nm) | 1 | 3 | ★ | 55 | 138 | 255 | 448 |
|---|
| 4 | 17 | 49 | 134 | 280 | 517 |
| 5 | 18 | 53 | 146 | 304 | 580 |
| 7 | 16 | 46 | 132 | 279 | 512 |
| 9 | 13 | 40 | 110 | 229 | 431 |
| 10 | 13 | 40 | 108 | 238 | 451 |
| 2 | 15 | 19 | 55 | 138 | 255 | 448 |
| 20 | 17 | 49 | 134 | 280 | 517 |
| 25 | 18 | 53 | 146 | 304 | 580 |
| 30 | ★ | 48 | 138 | 281 | 533 |
| 35 | 16 | 46 | 132 | 279 | 512 |
| 40 | 17 | 49 | 134 | 280 | 517 |
| 45 | 13 | 40 | 108 | 234 | 446 |
| 50 | 18 | 53 | 146 | 304 | 580 |
| 63 | 17 | 48 | 138 | 281 | 533 |
| 70 | 16 | 46 | 132 | 284 | 512 |
| 81 | 13 | 40 | 110 | 229 | 431 |
| 90 | 13 | 40 | 110 | 229 | 431 |
| 100 | 13 | 40 | 108 | 238 | 451 |
| Emergency Stop Torque (Nm) | 1,2 | 3~100 | 3 times nominal output torque |
|---|
| Nominal Input Speed (rpm) | 1,2 | 3~100 | 5,000 | 5,000 | 4,000 | 4,000 | 3,000 |
|---|
| Max. Input Speed (rpm) | 1,2 | 3~100 | 10,000 | 10,000 | 8,000 | 8,000 | 6,000 |
|---|
| Torsional Rigidity (Nm/Arcmin) | 1,2 | 3~100 | 3 | 6 | 12 | 22 | 50 |
|---|
| Max. Radial Load (N) | 1,2 | 3~100 | 700 | 1,200 | 3,200 | 6,800 | 9,300 |
|---|
| Max. Axial Load (N) | 1,2 | 3~100 | 360 | 650 | 1,600 | 3,400 | 4,500 |
|---|
| Backlash (Arcmin) | S | 1 | 3~10 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 |
|---|
| 2 | 15~100 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 | ≤ 10 |
| P | 1 | 3~10 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 | ≤ 5 |
|---|
| 2 | 15~100 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 |
| Service Life (Hrs) | 1,2 | 3~100 | 20,000 (10,000 under continuous operation) |
|---|
| Efficiency (%) | 1 | 3~10 | ≥ 97 |
|---|
| 2 | 15~100 | ≥ 94 |
| Weight (kg) | 1A | 3~10 | ≤ 0.6 | ≤ 1.3 | ≤ 3.8 | ≤ 7.6 | ≤ 15.0 |
|---|
| 2A | 15~100 | ≤ 0.8 | ≤ 1.8 | ≤ 5.0 | ≤ 10.3 | ≤ 19.6 |
| 2B | 15~100 | - | ≤ 1.6 | ≤ 4.7 | ≤ 9.6 | ≤ 18.0 |
| Operating Temp (℃) | 1,2 | 3~100 | -10 ~ 90 |
|---|
| Lubrication | 1,2 | 3~100 | Grease (VIGO Grease RE #0) |
|---|
| Degree of Gearbox Protection | 1,2 | 3~100 | IP65 |
|---|
| Noise (dB) | 1,2 | 3~100 | ≤ 55.0 | ≤ 57.0 | ≤ 59.0 | ≤ 62.0 | ≤ 64.0 |
|---|
| Inertia (㎏㎠) | 1A | 3 | 0.03 | 0.17 | 0.64 | 3.12 | 9.23 |
|---|
| 4 | 0.03 | 0.15 | 0.51 | 2.84 | 7.66 |
| 5 | 0.03 | 0.13 | 0.48 | 2.81 | 7.52 |
| 7 | 0.03 | 0.13 | 0.45 | 2.69 | 7.16 |
| 9 | 0.03 | 0.13 | 0.44 | 2.59 | 7.05 |
| 10 | 0.03 | 0.13 | 0.44 | 2.59 | 7.05 |
| 2B | 15~45 | - | 0.03 | 0.13 | 0.48 | 2.81 |
| 50~100 | - | 0.03 | 0.13 | 0.44 | 2.69 |
| 2A | 15~45 | 0.03 | 0.13 | 0.48 | 2.81 | 7.52 |
| 50~100 | 0.03 | 0.13 | 0.44 | 2.69 | 7.05 |
Please contact LS ELECTRIC sales person for ★ gear ratio
(1) Considering safety factors, nominal output torque is calculated
(2) Max. output torque is equivalent to 60% of the emergency stop torque
